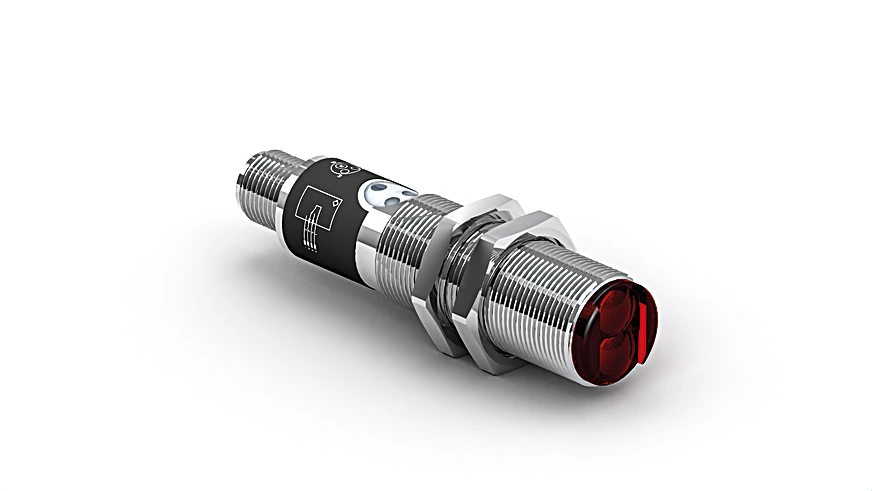

Wenglor XD100NA3 Retro-Reflex Sensor Universal

Retro-Reflex Sensor Universal.

$425.00
Part Number
  • XD100NA3
Highlights...

Features

  • Stainless steel housing
  • Smallest recognizable part: 0,1 mm
  • Range: 14 m
  • Switching frequency: 3 kHz
  • Range: 14,000 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Smallest Recognizable Part: 100 µm
  • Switching Hysteresis: < 15 %
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 1 °
  • Beam Divergence: < 15 mrad
  • Light Spot Diameter: see table 1
  • Focus Distance: 350 mm
  • Two-Lens Optic: yes
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 3 kHz
  • Response Time: 167 µs
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • NPN Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 0820386-000

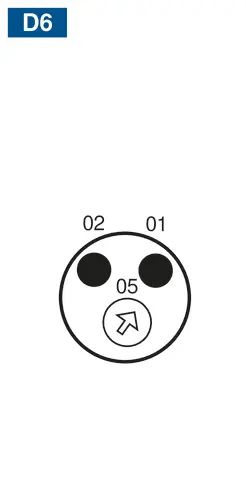

  • Setting Method: Potentiometer
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67

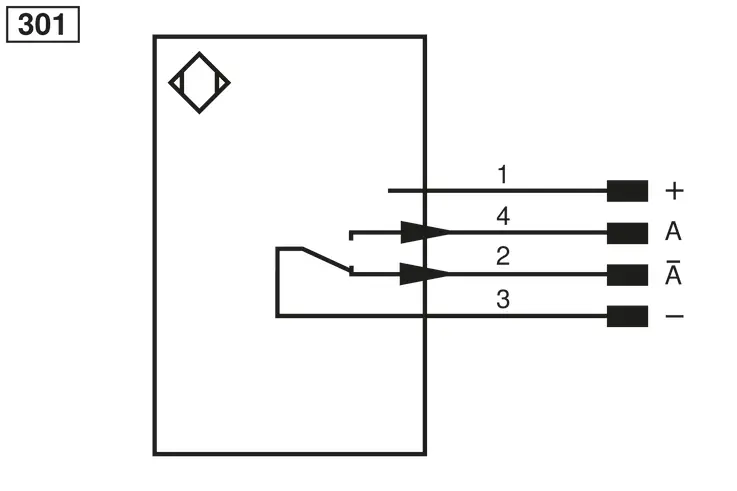

  • Connection: M12 × 1; 4-pin
  • Weight: 36 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • NPN NC, NPN NO: yes
  • Working Distance: 0,2 m, 5 m, 10 m
  • Light Spot Diameter: 2 mm, 42,5 mm, 85 mm
  • RQ100BA: 0.6 to 14 m
  • RE18040BA: 0.6 to 9.5 m
  • RQ84BA: 0.75 to 11 m
  • RR84BA: 0.55 to 14 m
  • RE9538BA: 0.55 to 5 m
  • RE6151BM: 0.35 to 10 m
  • RE6151BA: 0.5 to 4.5 m
  • RR50_A: 0.65 to 9 m
  • RE6040BA: 0.5 to 11 m
  • RE8222BA: 0.7 to 5.5 m
  • RR34_M: 0.6 to 5.5 m
  • RE3220BM: 0.55 to 3.5 m
  • RE6210BM: 0.45 to 3.5 m
  • RR25_M: 0.4 to 4.5 m
  • RR25KP: 0.3 to 2.5 m
  • RR21_M: 0.4 to 3 m
  • ZRAE02B01: 0.7 to 4.5 m
  • ZRME01B01: 0.5 to 1.8 m
  • ZRME03B01: 0.5 to 5 m
  • ZRMR02K01: 0.5 to 2 m
  • ZRMS02_01: 0.6 to 2.8 m
  • RF508: 0.4 to 1.1 m
  • RF258: 0.4 to 1.6 m
  • ZRDF__K01: 0.4 to 7 m
  • Complementary Products: Reflector, Reflector Foil, Dust Extraction Tube STAUBTUBUS-01
A reflector must be used in combination with these sensors. They can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light.
