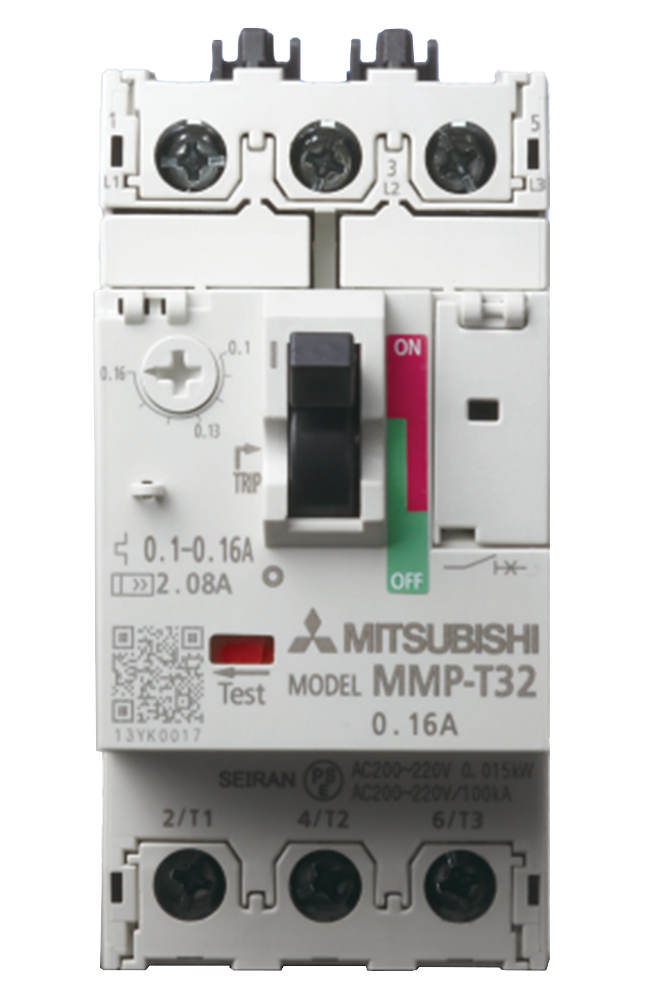

Mitsubishi WS MMP-T Series Manual Motor Protection Circuit Breaker

Name: Mitsubishi WS MMP-T Series Manual Motor Protection Circuit Breaker
Price: 97.0 USD
Availability: BackOrder

3-pole manual motor controller circuit breaker with rated currents up to 32A. AC operation, 200 to 690V.

Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.

Highlights...

By Mitsubishi
FREE Shipping on orders of $1,000 or more
Call for availability

Features

Frame: A, T32
Number of poles: 3
Rated current(s): 0.16 up to 32A
Breaking capacity: up to 100kA
Rated voltage: AC operation, 200 to 690V
45mm wide enclosure
Certifications: JIS C8201-2-1 Ann.1, JIS 8201-4-1, EN60947-2, EN60947-4-1, IEC60947-2, IEC60947-4-1, GB14048.2

The Mitsubishi WS MMP-T Series Manual Motor Protection Circuit Breaker is a comprehensive line of circuit protectors engineered for reliable low-voltage power distribution applications from 0.16 up to 32A. The rated breaking capacity goes up to 100kA depending on voltage and model configuration (200/240V). Key features include the compact, space-saving design with standardized mounting and accessory systems. This device is capable of protecting the motor branch circuits from overload,
phase-loss, and short-circuit conditions.

The MMP-T Series circuit breakers come standard with a DIN and VDE standard-compliant charging part protection, improving safety during maintenance. When used in conjunction with a connection conductor unit (UT-MT), the size of the control board and distribution board if further decreased. Additionally, these units can be assembled with an auxiliary contact (UT-MAX), alarm contact unit (UT-MAL) and/or a short-circuit indicator unit (UT-TU).
