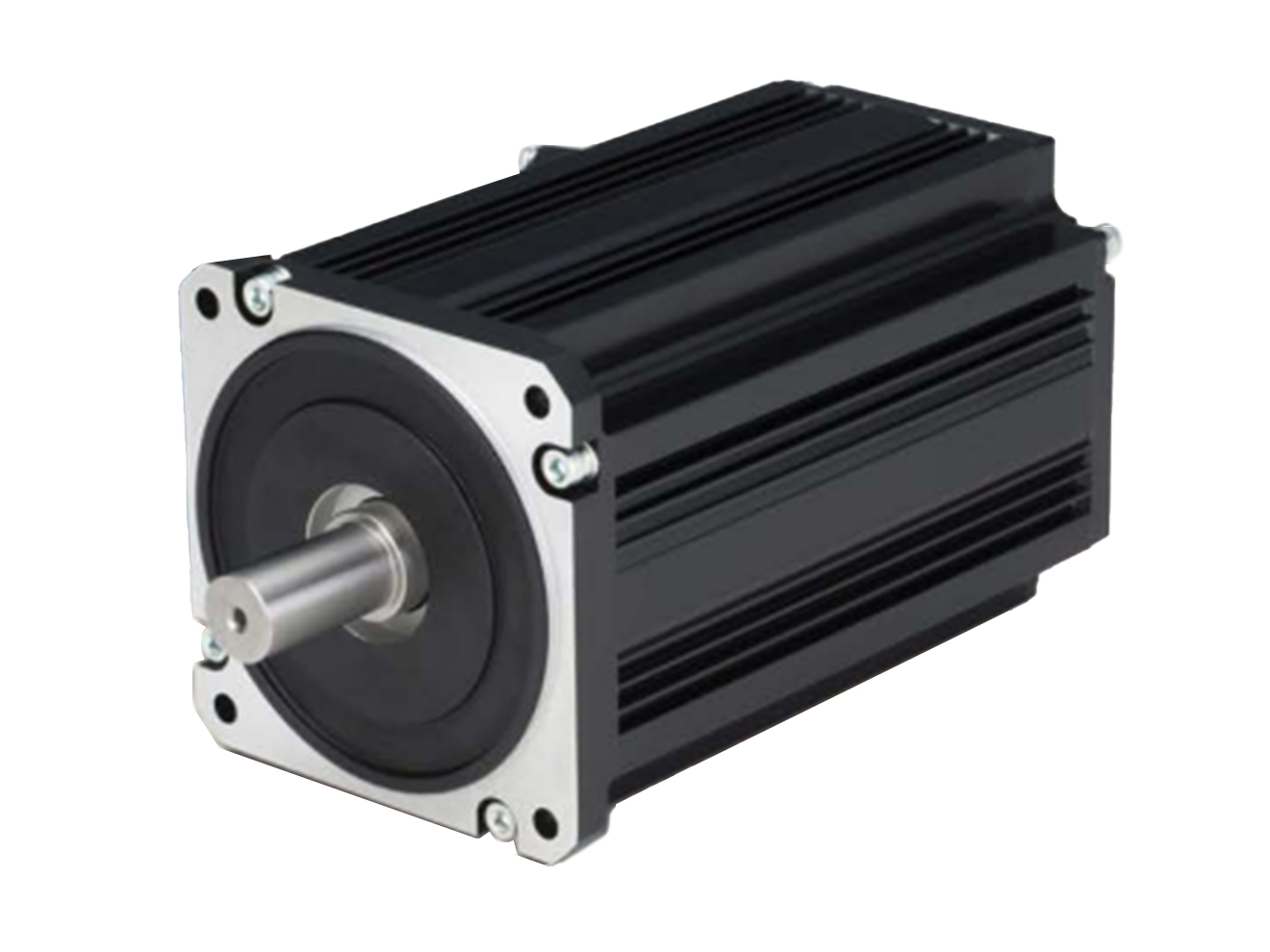

Mitsubishi EM-A Series Sensorless Servo Motor

Salient core-based permanent magnet motor with 3000rpm rated speeds and up to 23.9Nm rated torque. Sensorless design.

This model has 36 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Rated torque: 0.32 to 23.9Nm
  • Maximum torque: 200%
  • Rated speed: 3000rpm
  • Maximum speed: 4000rpm
  • Rated output: 0.1 5to 7.5kW
  • Totally enclosed self-cooling
  • Ambient operating temperature: 0 to 40°C (non-freezing)
  • Ambient operating humidity: 90%RH maximum (non-condensing)
  • Enclosure rating: IP44 / IP65
  • Voltage: 400V
    • 200V with 0.1 and 0.2kW
  • Compatible inverter series: FR-A800, FR-E700, FR-E800
    • Configuration dependent contact a Motion World engineer for details

The Mitsubishi EM-A Series Sensorless Servo Motor offers excellent positioning control without the need for an encoder. The salient-pole core with surface-mounted permanent magnets facilitates motor inductance which varies based on rotational position, offering highly precise position detection.

Continuous operation is possible at maximum speeds of 4000rpm, with speed variation within ±0.05% (with digital input). Maximum rated torque is up to 200% (up to 23.9Nm rated). This allows the motor to maintain stable speed even under changing loads, without significant variations. The lock function generates holding torque when the motor stops, preventing movement from external forces. The EM-A Series is suitable for high-precision transfer systems in semiconductor and liquid crystal manufacturing lines.
