Mitsubishi MELSEC iQ-F FX5 Series Positioning Module

4 to 8-axis motion control module with SSCNET III/H communication protocol for use with MELSEC iQ-F PLCs.

This model has 2 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Linear interpolation
  • Circular interpolation
  • Continuous path control
  • S-curve acceleration/deceleration
  • Mark detection
  • Synchronous control
  • Communication interface: SSCNET III/H protocol
  • Memory capacity:
    • 4 axis: 64kB cam save area / 1024kB cam load area
    • 8 axis: 128kB cam save area / 1024kB cam load area
  • Power supply: 24VDC

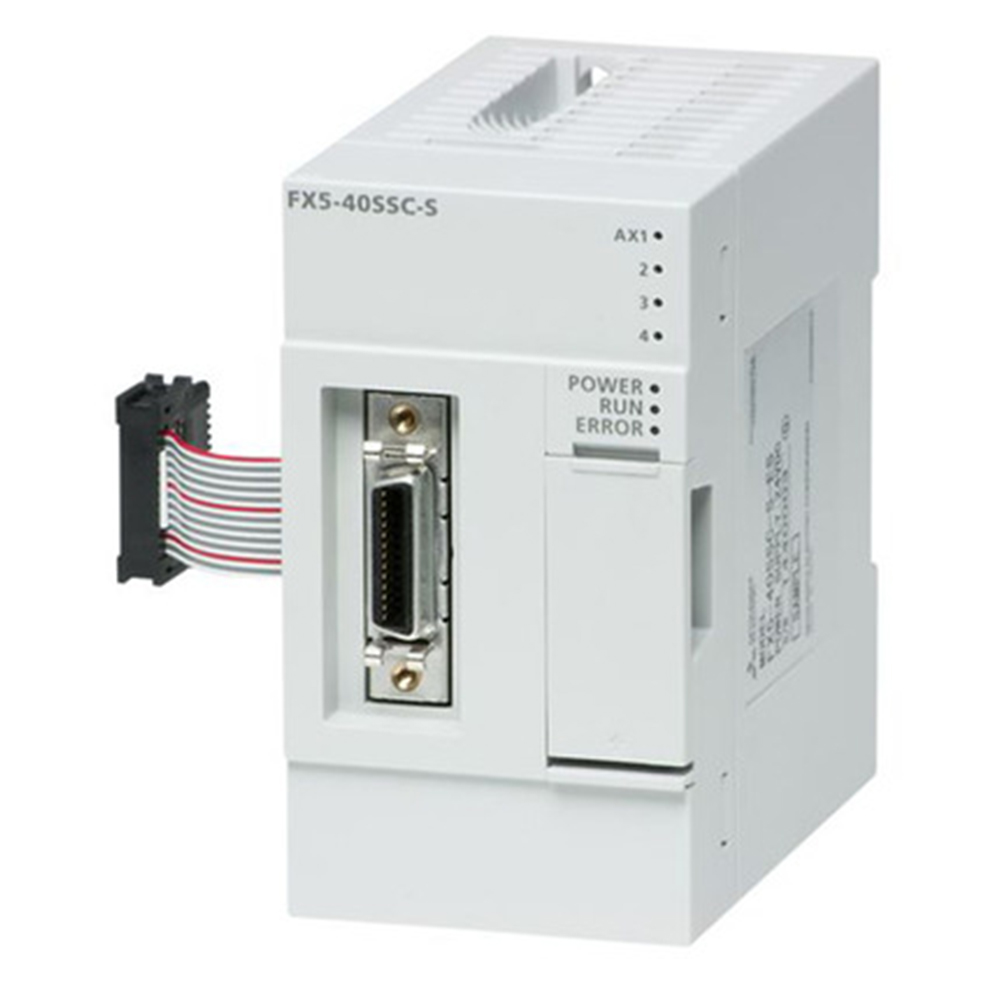

The Mitsubishi MELSEC iQ-F FX5 Series Simple Positioning Module (models FX5-40SSC-S and FX5-80SSC-S) provides compact, high-performance 4/8-axis motion control capabilities integrated with SSCNET III/H positioning control. It can be used for various purposes by combining linear interpolation, 2-axis circular interpolation, constant quantity feed, and continuous path control in a table-based program. Synchronous control features of this module line include independent start/stop of each axis, and coexistence of synchronously-controlled axes and position-controlled axes on the same system. All axes can be synchronized to the synchronous encoder axis enabling use with a range of application systems including sealing, palletizing operations, grinding and packaging operations.
