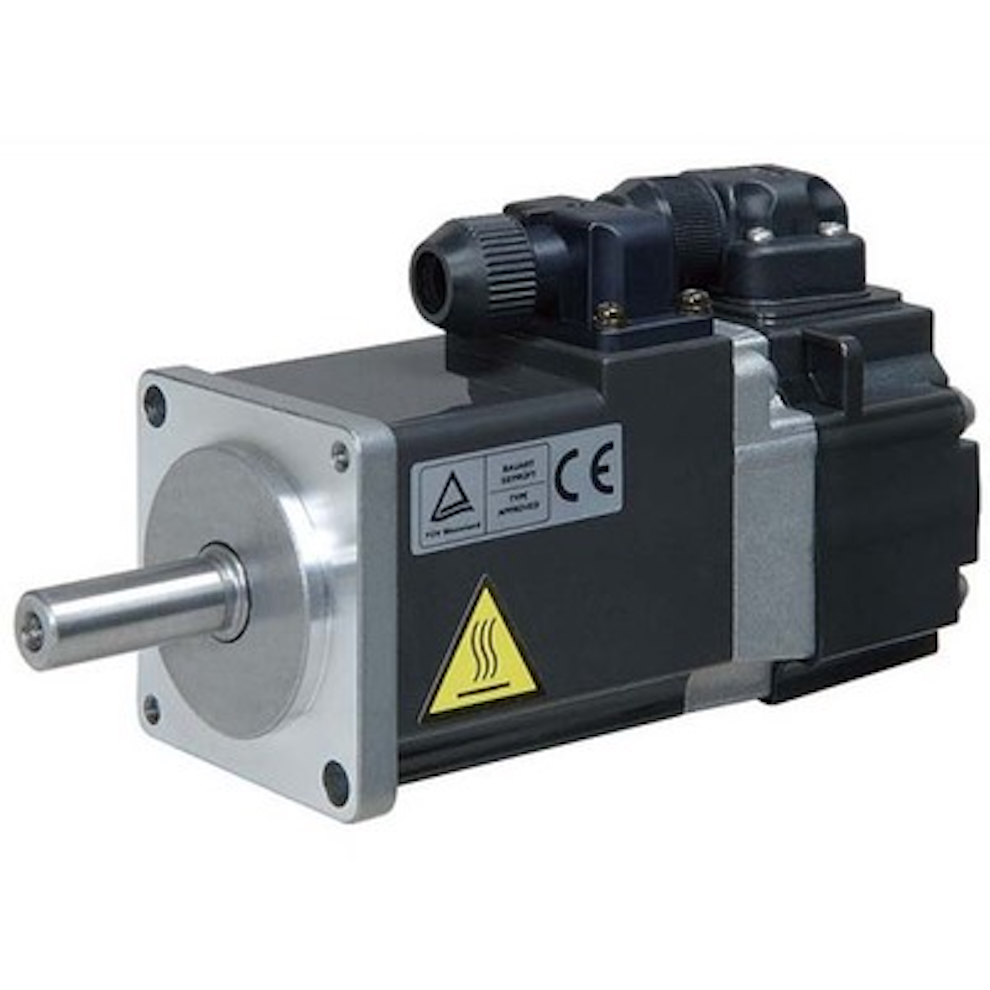

Mitsubishi MELSERVO-JN HF-KN Series Servo Motor

The Mitsubishi MELSERVO-JN HF-KN Series Servo Motor represents a low-inertia, small-capacity AC solution designed for applications demanding precise positioning and exceptional speed stability. Equipped with a high-resolution incremental encoder delivering 131,072 pulses per revolution, these motors achieve highly accurate positioning even at low speeds. Available in rated outputs ranging from 0.05 kW to 0.4 kW with a standard rated speed of 3000 RPM, the HF-KN series operates on a three-phase 200VAC power supply. This series offers flexible configuration options including electromagnetic brake models, oil seal protection, and various shaft configurations (straight, keyed, or D-cut) to match specific application requirements.

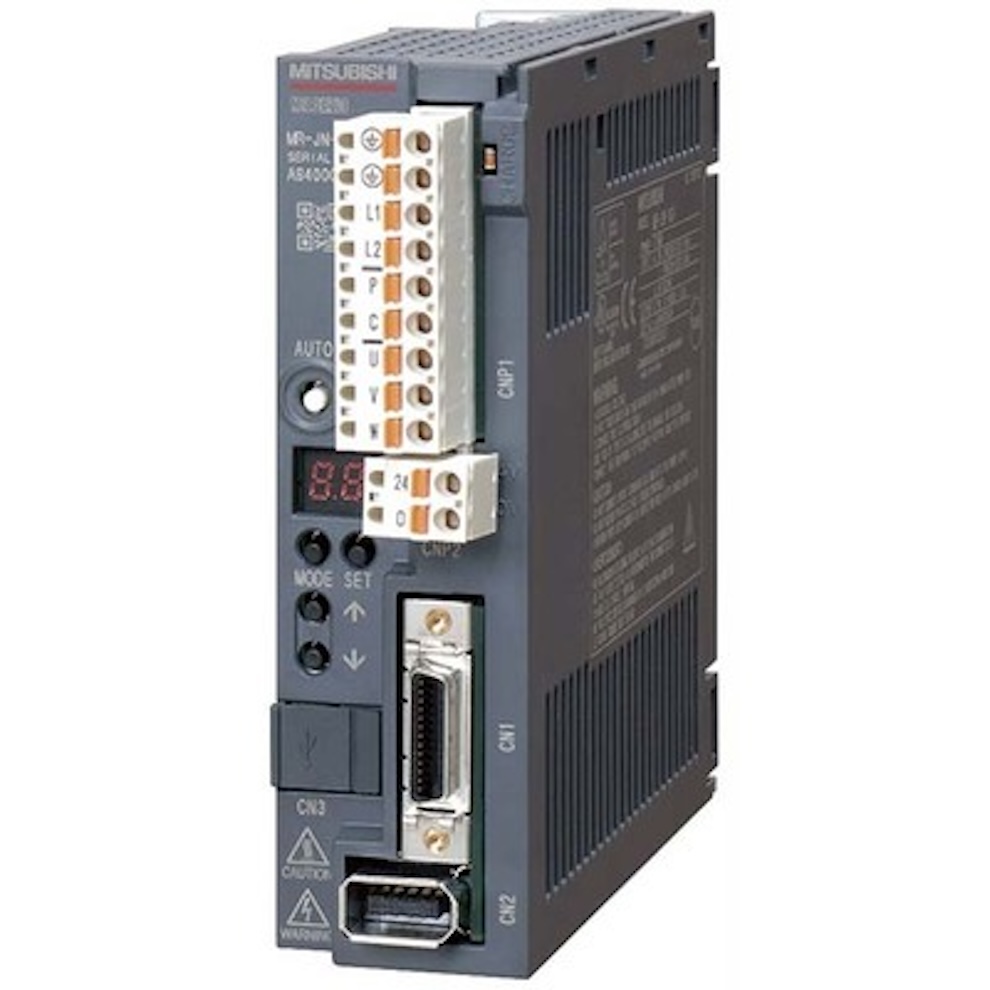

The HF-KN series features IP65 protection rating as standard, enhancing its ability to withstand harsh environmental conditions. Motors utilize natural cooling, and can be paired with Mitsubishi's MR-J3 and MR-JN Series servo amplifiers for seamless integration into automation systems. Connections are possible from either the load side or non-load side depending on the selected cable configuration. The HF-KN Series motors operate effectively in ambient temperatures from 0 to 40°C, suitable for global deployment across manufacturing, packaging, robotics, and precision machinery applications.
