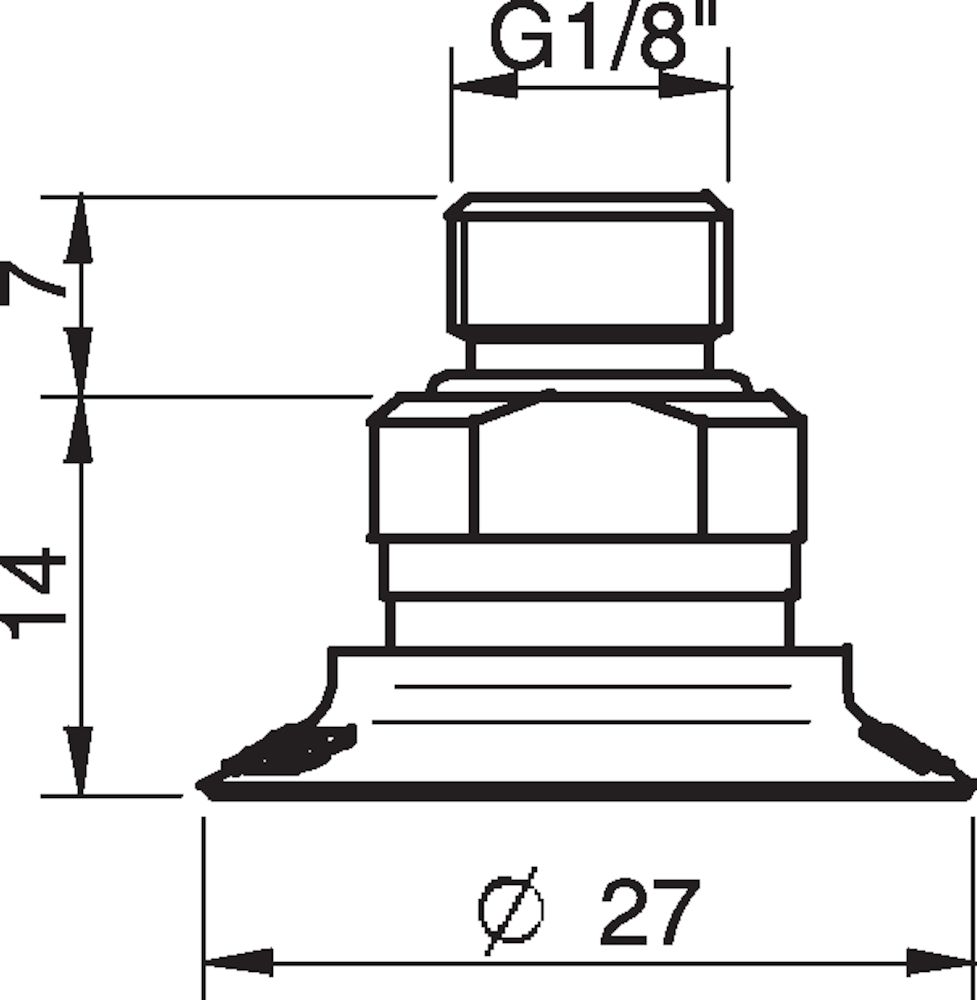

Piab F25MF.40.02AB / 0101315
$19.78
Part Numbers
- F25MF.40.02AB
- 0101315
Highlights...
- F25MF.40.02AB
- By Piab
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Material: TPE
- Dimensions: 0.83 in. (length), 0 lb. (weight)
- Fitting Size: 18 mm.
- Curve Radius (Min): 23 mm.
- Movement Vertical (Max): 1.2 mm.
This product is an accessory for the following products:
Description
Lifting Force Specifications
| Vacuum Level | Lifting Force | Direction |
|---|---|---|
| 20 -kPa | 6.3 N | Vertical to the Surface |
| 40 -kPa | 0 N | Vertical to the Surface |
| 50 -kPa | 0 N | Vertical to the Surface |
| 60 -kPa | 24.5 N | Vertical to the Surface |
| 90 -kPa | 35.5 N | Vertical to the Surface |
| 10 -kPa | 0 N | Parallel to the Surface |
| 20 -kPa | 9 N | Parallel to the Surface |
| 40 -kPa | 0 N | Parallel to the Surface |
| 60 -kPa | 24.5 N | Parallel to the Surface |
| 90 -kPa | 36.3 N | Parallel to the Surface |
Material Quality Specifications
| Material | Quality |
|---|---|
| Wear Resistance | Excellent |
| Oil | Excellent |
| Weather Ozone | Excellent |
| Hydrolysis | Poor |
| Petrol | Poor |
| Concentrated Acids | Poor |
| Alcohol | Good |
| Ethanol | Not applicable |
| Methanol | Not applicable |
| Oxidation | Good |
