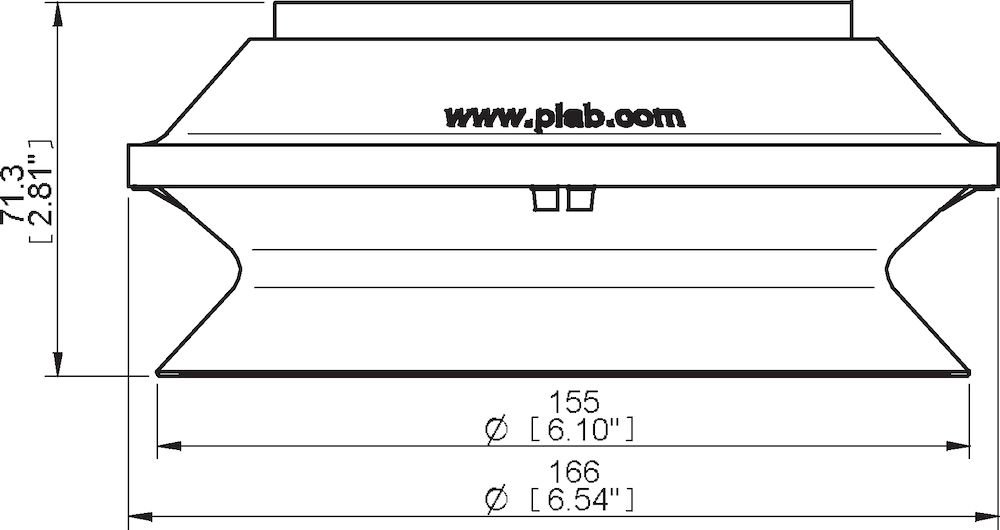

Piab B150.30.W / 3150036P Suction cup B150 Nitrile-PVC with washer

$82.70
Part Numbers
  • B150.30.W
  • 3150036P
Highlights...

Features

  • Material: Nitrile-PVC (NPV)
  • Dimensions: 2.81 in. (length), 0.58 lb. (weight)
  • Fitting Size: None mm.
  • Curve Radius (Min): 75 mm.
  • Movement Vertical (Max): 46.6 mm.

Lifting Force Specifications

Vacuum Level Lifting Force Direction
20 -kPa 294 N Vertical to the Surface
40 -kPa 0 N Vertical to the Surface
50 -kPa 0 N Vertical to the Surface
60 -kPa 686 N Vertical to the Surface
90 -kPa 883 N Vertical to the Surface
10 -kPa 0 N Parallel to the Surface
20 -kPa 0 N Parallel to the Surface
40 -kPa 0 N Parallel to the Surface
60 -kPa 0 N Parallel to the Surface
90 -kPa 0 N Parallel to the Surface

Material Quality Specifications

Material Quality
Wear Resistance Excellent
Oil Excellent
Weather Ozone Good
Hydrolysis Good
Petrol Excellent
Concentrated Acids Fair
Alcohol Good
Ethanol Not applicable
Methanol Not applicable
Oxidation Good
