Piab B110.20.W / 3150035S Suction cup B110 Silicone with washer

$83.21
Part Numbers
  • B110.20.W
  • 3150035S
Highlights...

Features

  • Material: Silicone (SIL)

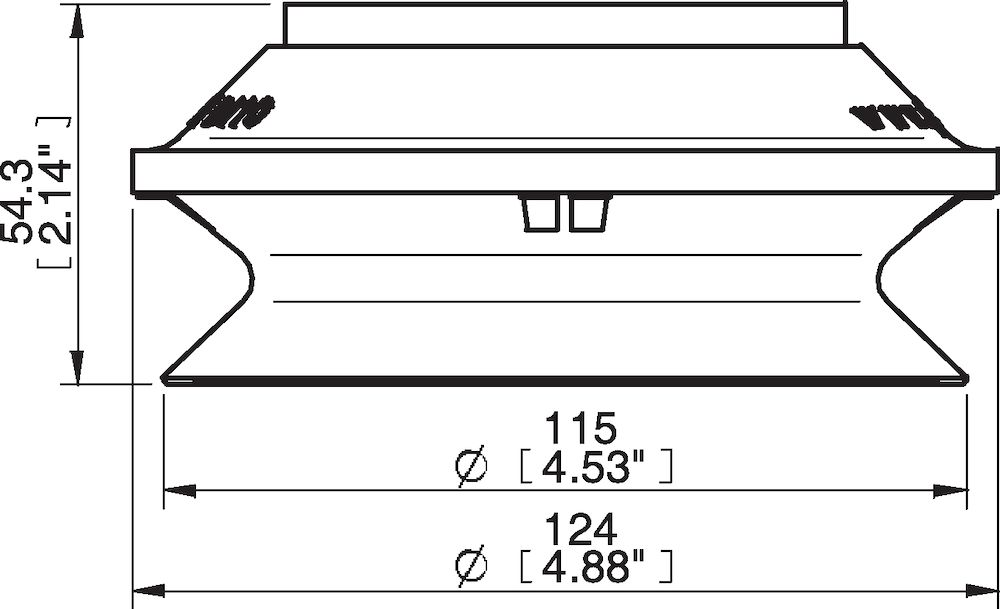

  • Dimensions: 2.14 in. (length), 0.26 lb. (weight)
  • Fitting Size: None mm.
  • Curve Radius (Min): 60 mm.
  • Movement Vertical (Max): 34.6 mm.

Lifting Force Specifications

Vacuum Level Lifting Force Direction
20 -kPa 137 N Vertical to the Surface
40 -kPa 0 N Vertical to the Surface
50 -kPa 0 N Vertical to the Surface
60 -kPa 343 N Vertical to the Surface
90 -kPa 461 N Vertical to the Surface
10 -kPa 0 N Parallel to the Surface
20 -kPa 0 N Parallel to the Surface
40 -kPa 0 N Parallel to the Surface
60 -kPa 0 N Parallel to the Surface
90 -kPa 0 N Parallel to the Surface

Material Quality Specifications

Material Quality
Wear Resistance Good
Oil Poor
Weather Ozone Excellent
Hydrolysis Fair
Petrol Poor
Concentrated Acids Poor
Alcohol Good
Ethanol Not applicable
Methanol Not applicable
Oxidation Excellent
