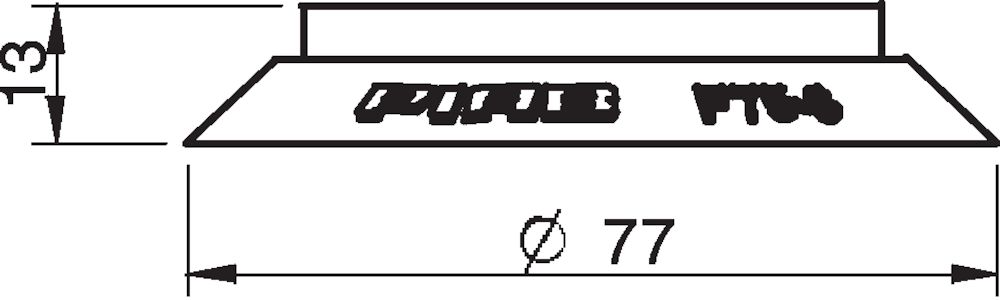

Piab F75.20.W / 3150037S Suction cup F75 Silicone with washer
$35.51
Part Numbers
- F75.20.W
- 3150037S
Highlights...
- F75.20.W
- By Piab
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Material: Silicone (SIL)
- Dimensions: 0.51 in. (length), 0.05 lb. (weight)
- Fitting Size: None mm.
- Curve Radius (Min): 150 mm.
- Movement Vertical (Max): 3 mm.
This product is an accessory for the following products:
Description
Lifting Force Specifications
| Vacuum Level | Lifting Force | Direction |
|---|---|---|
| 20 -kPa | 80 N | Vertical to the Surface |
| 40 -kPa | 0 N | Vertical to the Surface |
| 50 -kPa | 0 N | Vertical to the Surface |
| 60 -kPa | 200 N | Vertical to the Surface |
| 90 -kPa | 270 N | Vertical to the Surface |
| 10 -kPa | 0 N | Parallel to the Surface |
| 20 -kPa | 60 N | Parallel to the Surface |
| 40 -kPa | 0 N | Parallel to the Surface |
| 60 -kPa | 110 N | Parallel to the Surface |
| 90 -kPa | 140 N | Parallel to the Surface |
Material Quality Specifications
| Material | Quality |
|---|---|
| Wear Resistance | Good |
| Oil | Poor |
| Weather Ozone | Excellent |
| Hydrolysis | Fair |
| Petrol | Poor |
| Concentrated Acids | Poor |
| Alcohol | Good |
| Ethanol | Not applicable |
| Methanol | Not applicable |
| Oxidation | Excellent |
