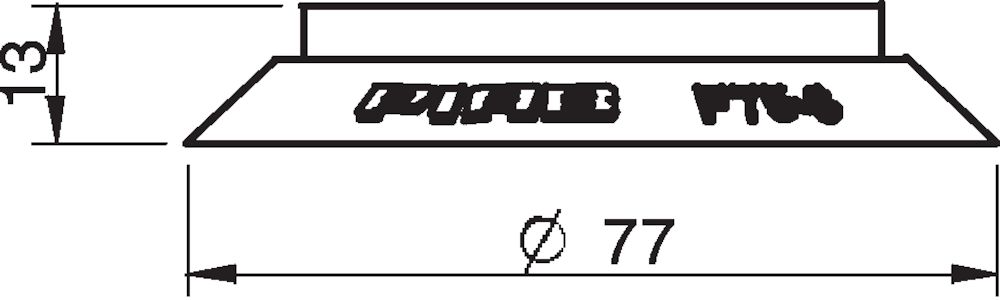

Piab F75.30.W / 3150037P Suction cup F75 Nitrile-PVC with washer

$26.18
Part Numbers
  • F75.30.W
  • 3150037P
Highlights...

Features

  • Material: Nitrile-PVC (NPV)
  • Dimensions: 0.51 in. (length), 0.05 lb. (weight)
  • Fitting Size: None mm.
  • Curve Radius (Min): 150 mm.
  • Movement Vertical (Max): 3 mm.

Lifting Force Specifications

Vacuum Level Lifting Force Direction
20 -kPa 80 N Vertical to the Surface
40 -kPa 0 N Vertical to the Surface
50 -kPa 0 N Vertical to the Surface
60 -kPa 200 N Vertical to the Surface
90 -kPa 270 N Vertical to the Surface
10 -kPa 0 N Parallel to the Surface
20 -kPa 60 N Parallel to the Surface
40 -kPa 0 N Parallel to the Surface
60 -kPa 110 N Parallel to the Surface
90 -kPa 140 N Parallel to the Surface

Material Quality Specifications

Material Quality
Wear Resistance Excellent
Oil Excellent
Weather Ozone Good
Hydrolysis Good
Petrol Excellent
Concentrated Acids Fair
Alcohol Good
Ethanol Not applicable
Methanol Not applicable
Oxidation Good
