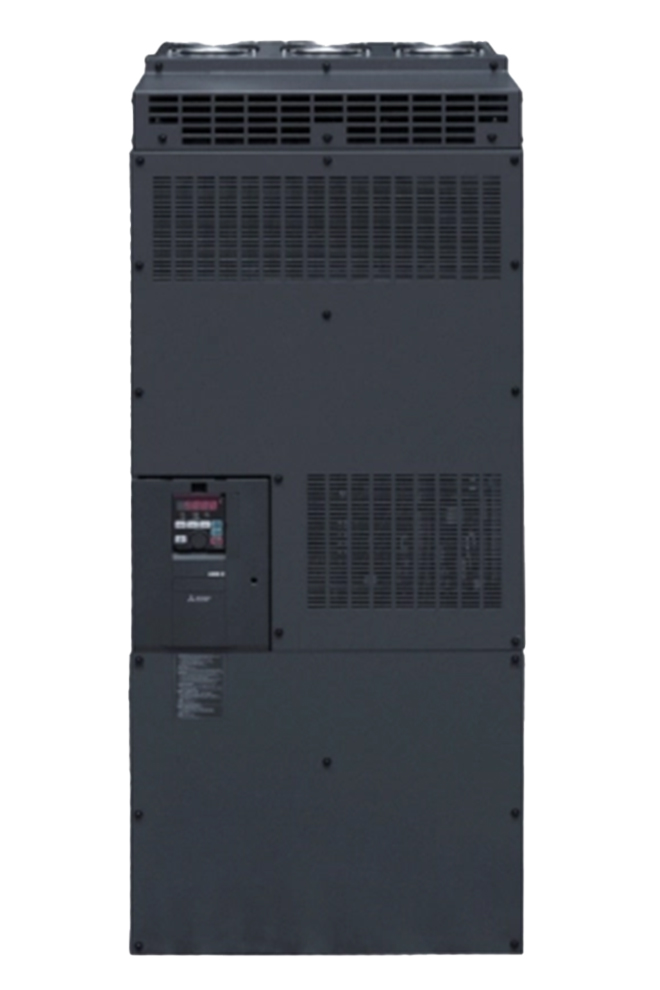

Mitsubishi FREQROL-A842-P Series Parallel Inverter Module

Separated converter type inverter module designed to operate in parallel in a 2 to 3 inverter system with FR-CC2-P converter units.

This model has 3 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Parallel operation: 2 to 3 inverter configuration
  • Supports up to 1800HP (1350kW) motors
  • Requires FR-CC2-P converter unit integration

The Mitsubishi FREQROL-A842-P Series Parallel Inverter Module offers the capability to support large-capacity motor control up to 1800HP (1350kW), via 2- to 3-parallel inverter system operation. The FR-A842-P Series inverters pair with FR-CC2-P converter units and FR-POL-H balance reactors for stable operation, reduced current rise, and high-performance control. These modules are ideal for use in applications involving large pumping systems and artificial lift. The FR-A842-P Series as fuse eliminates the need for external fuses between terminals P/+ and N/-, reducing installation space and overall costs.

The compatible FR-CC2-P Series converter modules can operate off of a 12-phase rectifier power supply. To maintain optimal performance, converter units must be the same series and rated capacity for consistent and reliable operation throughout the system.
