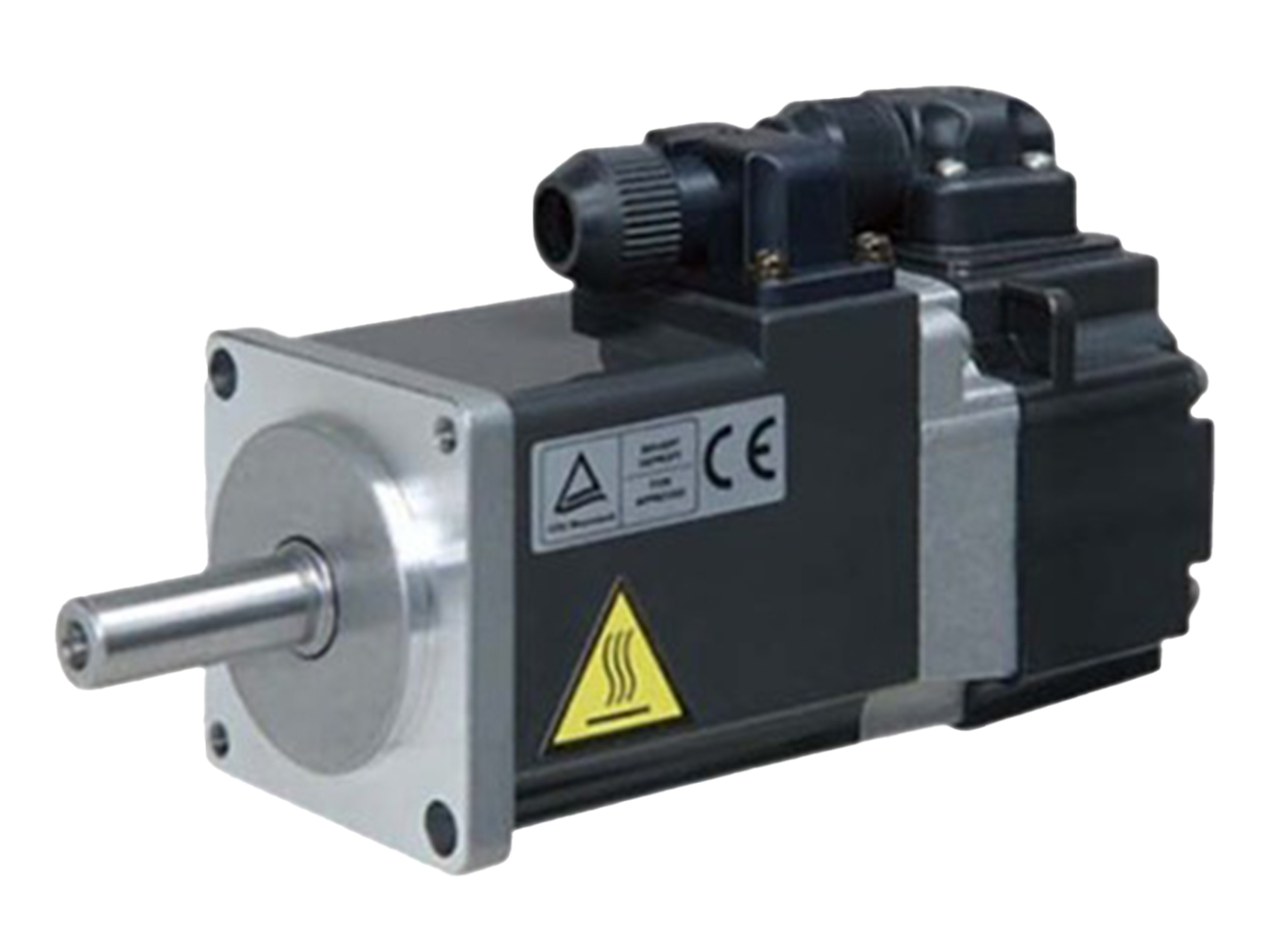

Mitsubishi MELSERVO-JE Series Rotary Servo Motor

Servo motor for small capacity, low inertia to medium inertia, medium capacity tasks. Up to 3000rpm rated speed and 14.3Nm rated torque. 17-bit encoder.

This model has 38 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Rated torque:
    • HG-KN: 0.32 to 2.4Nm
    • HG-SN: 2.39 to 14.3Nm
  • Maximum torque:
    • HG-KN: 0.95 to 7.2Nm
    • HG-SN: 7.16 to 42.9Nm
  • Rated speed:
    • HG-KN: 3000rpm
    • HG-SN: 2000rpm
  • Maximum speed:
    • HG-KN: 5000rpm
    • HG-SN: 3000rpm
  • Rated output:
    • HG-KN: 0.1 up to 0.75kW
    • HG-SN: 0.5 up to 3kW
  • 17-bit incremental encoder
  • Oil seal as standard (available without)
  • Ambient operating temperature: 0 to 40°C (non-freezing)
  • Ambient operating humidity: 80%RH maximum (non-condensing)
  • Enclosure rating:
    • HG-KN: IP65
    • HG-SN: IP67

The Mitsubishi MELSERVO-JE Series Servo Motor offers low inertia, small capacity (HG-KN), and medium inertia, medium capacity (HG-SN) motor configurations suited to a range of automated applications including Semiconductor/FPD/photovoltaic manufacturing systems, X-Y tables, robotics, feeders and sliders, food processing and packaging machines, press machines and more. The HG-KN model offers rated speeds up to 3000rpm (5000rpm max), whereas the HG-SN model features rated speeds up to 2000rpm (3000rpm max).

The HG-KNS and KH-SNS Series integrate a standard-issued 17-bit incremental encoder that operates at 131,072 pulses per revolution. Thanks to these inbuilt encoders, technicians can configure absolute position detection systems without additional components beyond a battery.
