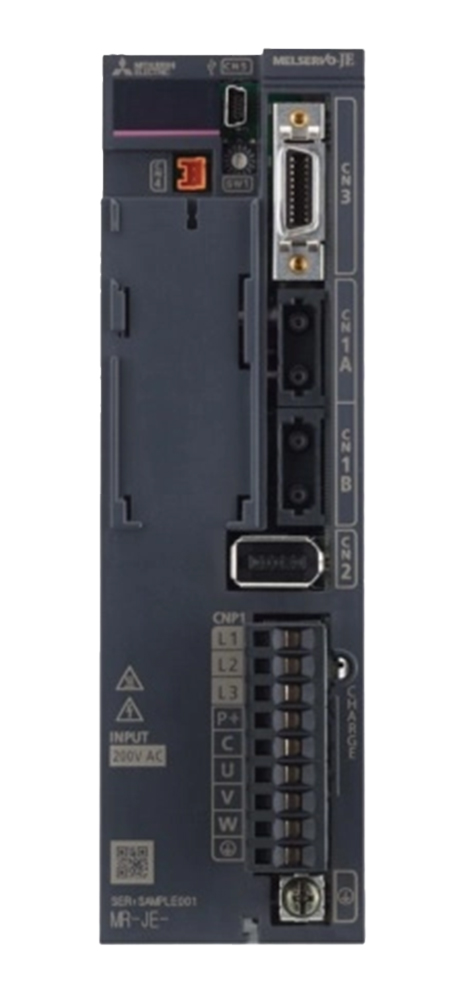

Mitsubishi MELSERVO-JE Series Servo Amplifier

Servo amplifier with optional Ethernet or SSCNET III/H interface for advanced motion control. Rated outputs from 0.1 to 3kW. 200V class.

This model has 28 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Rated output: 0.03 to 3kW
  • Interface(s): Ethernet, SSCNET III/H
  • Power supply: 1-/3-phase 200VAC
  • 17-bit encoder (131072 pulses per revolution)
  • Ambient operating temperature: 0 to 55°C (non-freezing)
  • Ambient operating humidity: 90%RH maximum (non-condensing)
  • Compatible servo motor series: HG-KN, HG-SN

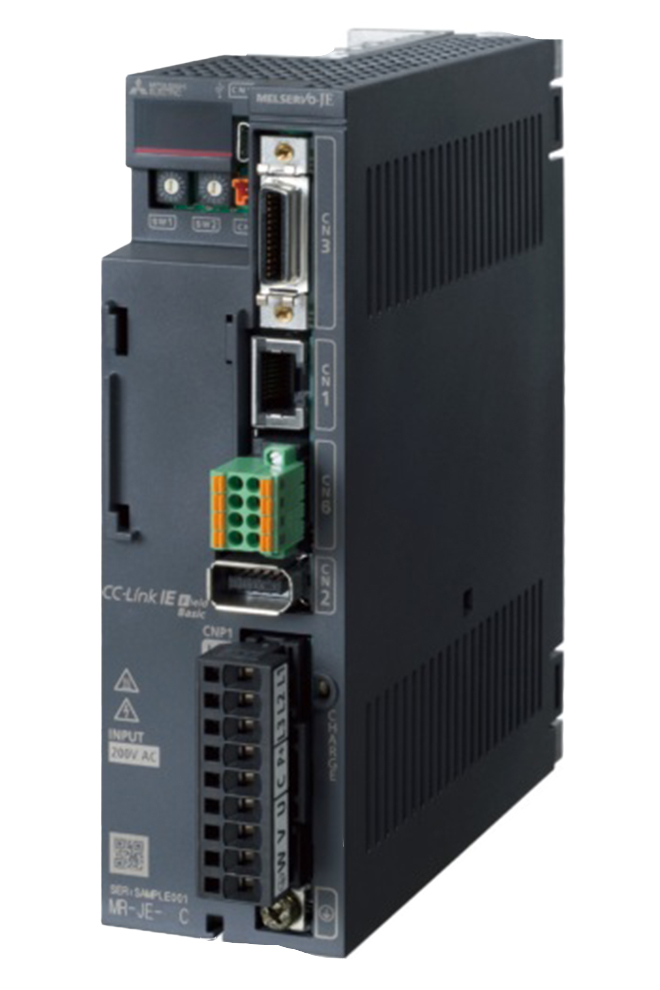

The Mitsubishi MELSERVO-JE Series Servo Amplifier is a series of electric AC drives with high-speed and accuracy.  These servo drives include output ranges from 0.03 up to 3kW. Ethernet and SSCNET III/H protocols offer advanced motion control, and seamless integration into existing control systems. The MR-JE-C model is Ethernet connection based, and as a result is also compatible with CC-Link IE Field Network Basic. -A and -C amplifier models support pulse train, analog voltage, and MODBUS protocols. The MR-JE- A and -C variants feature an inbuilt positioning function, enabling positioning operations with methods including the point table and indexer method. The MR-JE-A model is also equipped with additional advanced functionality including simple cam and position compensation. Both the MR-JE-C and -B variants offers support for absolute position detection systems.

The MELSERVO-JE Series support high-speed communication up to 150Mbps full duplex, communication cycles down to 0.444ms with SSCNET III/H connection, and a speed frequency response of 2kHz. The amplifiers incorporate sophisticated control functions including advanced vibration suppression control II, adaptive filter II, robust filter, and one-touch auto tuning for rapid commissioning and optimized machine performance. Additional intelligent features include drive recorder, machine diagnosis, power monitoring, and lost motion compensation.
