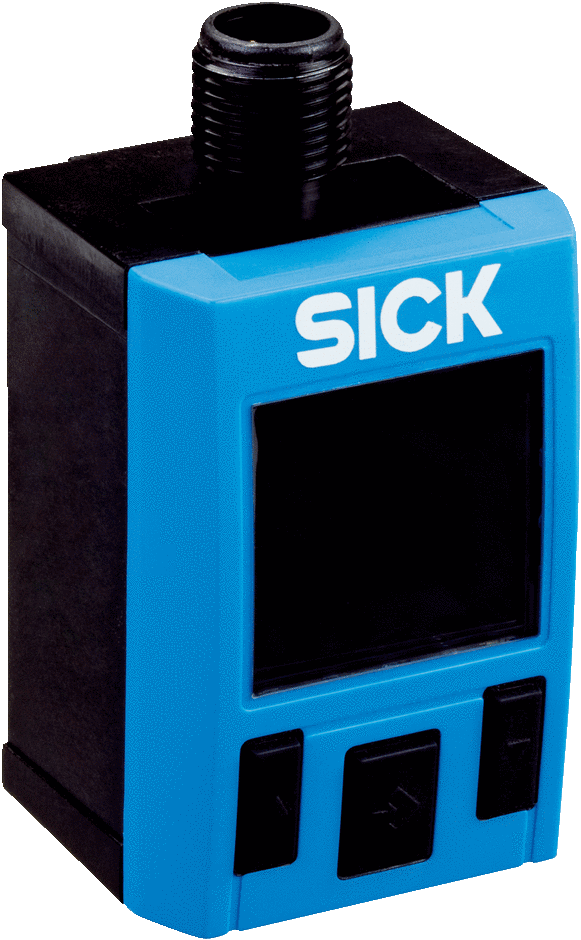

Sick 1062994 / PAC50-DCF Pressure Sensor

IO-Link/PNP + PNP/NPN/Push-Pull + 4 to 20mA / 0 to 10V output pressure sensor. 0 to 10bar measuring range. ≤ ± 1.5 % of the span accuracy. PIF 4 mm + G ¼ connection.

$248.00
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • PAC50-DCF
  • 1062994
Highlights...

Features

  • Gauge pressure pressure type
  • Bar pressure unit
  • 0 bar to 10 bar measuring range
  • 15 bar overpressure safety
  • ≤ ± 1.5 % of the span accuracy
  • Pif 4 mm + g ¼ process connection
  • 0 °c to +60 °c process temperature
  • Io-link/pnp + pnp/npn/push-pull + 4 ma to 20 ma / 0 v to 10 v output signal
  • Round connector m12 x 1, 5-pin connection type
  • Ip65, ip67 enclosure rating
  • 17 v DC to 30 v DC supply voltage
