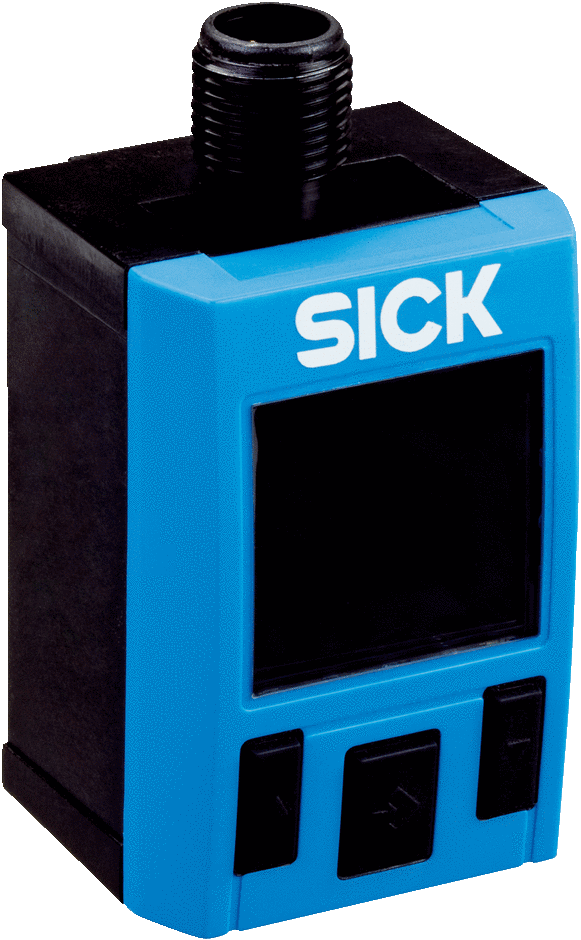

Sick 1062947 / PAC50-AGC Pressure Sensor
2 x PNP/NPN/Push-Pull + 4 to 20mA / 0 to 10V output pressure sensor. –1 to 0bar measuring range. ≤ ± 1.5 % of the span accuracy. 2 x G ¼ connection.
$231.00
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
- PAC50-AGC
- 1062947
Highlights...
- PAC50-AGC
- By SICK
- FREE Shipping on orders of $1,000 or more
Overview
Features
- Gauge pressure pressure type
- Bar pressure unit
- –1 bar to 0 bar measuring range
- 5 bar overpressure safety
- ≤ ± 1.5 % of the span accuracy
- 2 x g ¼ process connection
- 0 °c to +60 °c process temperature
- 2 x pnp/npn/push-pull + 4 ma to 20 ma / 0 v to 10 v output signal
- Round connector m12 x 1, 5-pin connection type
- Ip65, ip67 enclosure rating
- 17 v DC to 30 v DC supply voltage
