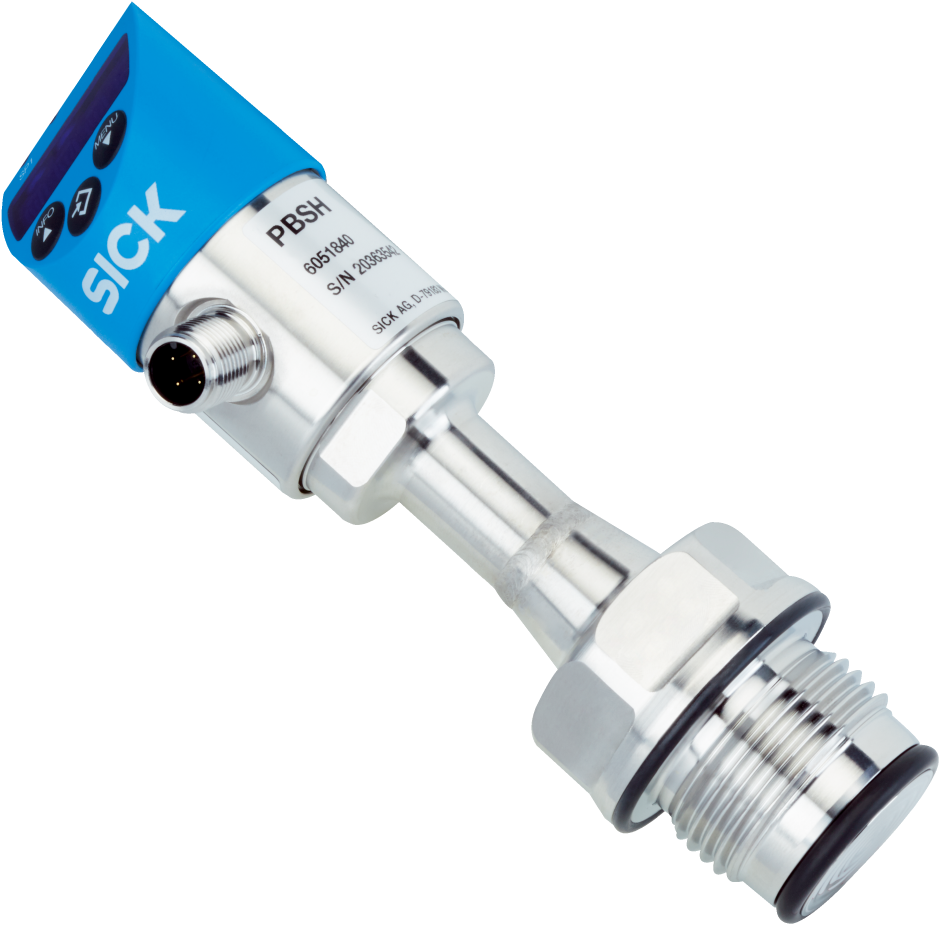

Sick 6082812 / PBSH-CB2X5SHGEEQ5A0Z Pressure Sensor

IO-Link/PNP + PNP + 4 to 20mA output pressure sensor. Compound pressure pressure, –1 to 1.5bar measuring range. ≤ ± 1 % of the span accuracy. G 1 hygienic flush-mounted connection.

$894.00
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • PBSH-CB2X5SHGEEQ5A0Z
  • 6082812
Highlights...

Features

  • Compound pressure pressure type
  • Bar pressure unit
  • –1 bar to 1.5 bar measuring range
  • ≤ ± 1 % of the span accuracy
  • G 1 hygienic flush-mounted process connection
  • –20 °c to +125 °c, +150 °c for max. 1 h process temperature
  • Wetted parts: EPDM seal
  • Io-link/pnp + PNP + 4 ma to 20 ma output signal
  • Round connector m12 x 1, 5-pin connection type
  • Ip65, ip67 enclosure rating
  • 15 v DC to 35 v DC supply voltage
