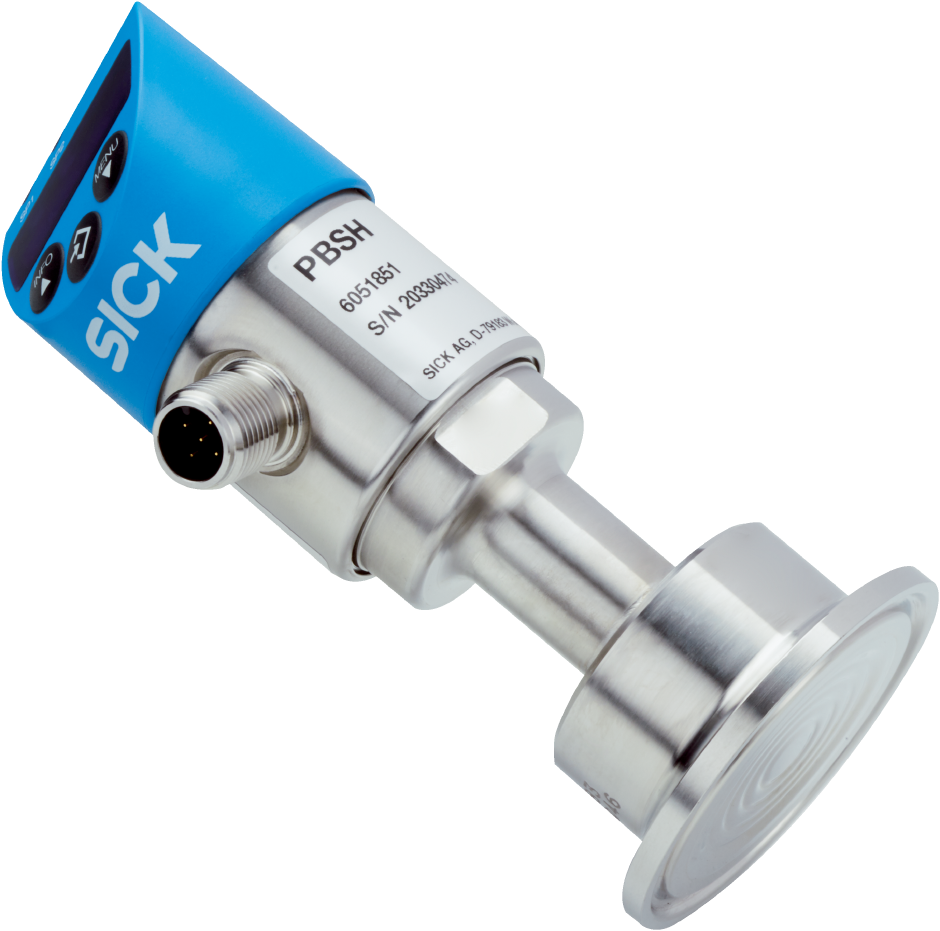

SICK PBS Hygienic Series Pressure Sensor

Analog and IO-Link enabled pressure switch for hygienic applications with rotatable display. Gauge, absolute and compound ranges.

This model has 154 variants.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • PBS Hygienic Series
Highlights...

Features

  • Interface: analog outputs, IO-Link
  • Measuring range(s):
    • Gauge: 0 to 25bar
    • Absolute: 0 to 25bar
    • Compound: -1 to 24bar
  • Pressure units: bar (can be switched to psi, MPa, kg/cm2)
  • Operating range: -20 to 125°C (depending on variant)
  • Accuracy: within 1% of span
  • Rotatable display
    • 3 large pushbutton navigation
  • High corrosion resistance
  • IP65 / IP67 rated enclosure
    • Stainless steel construction

The SICK PBS Hygienic Series Pressure Sensor combines the functionality of an electronic pressure switch, transmitter and display in one unit. This product line is available with two analog switching outputs, an analog output, and optional IO-Link. Measuring ranges include -1 bar up to 25bar. Units of measurement are available in bar, psi, or MPa. Variants include absolute and compound pressure ranges. This product is designed for CIP and SIP processes. The three large pushbuttons and display facilitates easy menu navigation and operation. The housing can be rotated in two ways, allowing display and electrical connection alignment in various installation scenarios. The PBS Hygienic Series features a stainless steel enclosure that is welded to the hygienic process connection, gap-free with no dead spaces or edges.

Applications

  • Food and beverage industry
  • Bottle filling machines
  • Packaging machines
  • Hydrostatic level measurement of liquids in tall tanks
