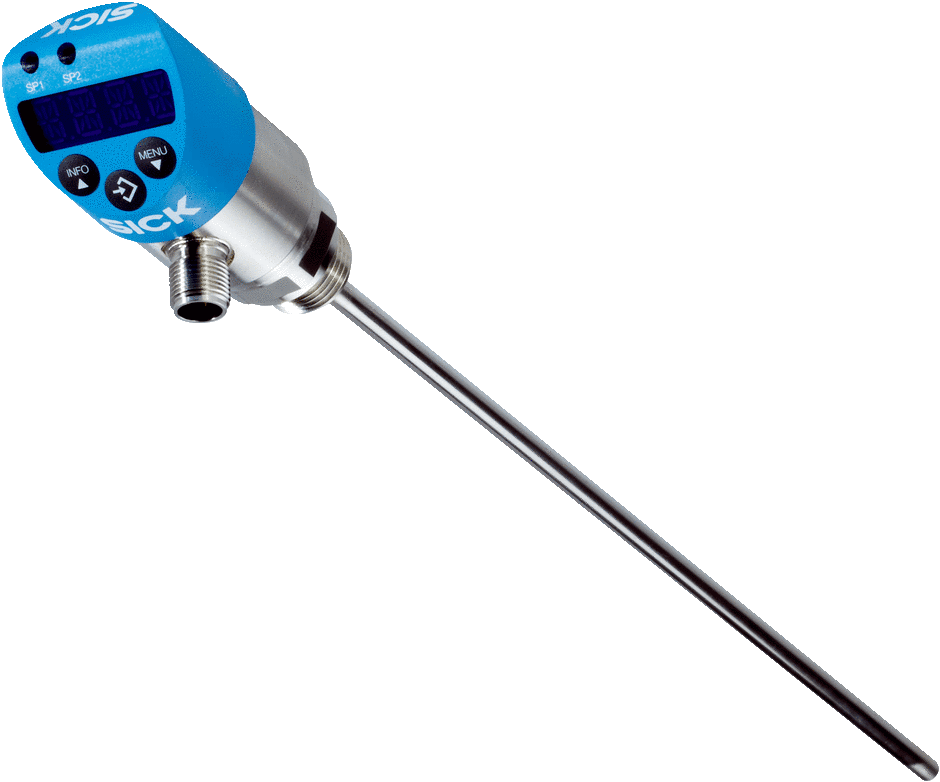

Sick 6063897 / TBS-1ASN20506ZM Temperature Sensor

Temperature sensor for industrial liquids and oils. 2 x PNP outputs. –20 to 80°C range. 50mm / 6mm insertion length/probe diameter. Thread ½'' NPT connection.

$521.00
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • TBS-1ASN20506ZM
  • 6063897
Highlights...

Features

  • –20 °c to +80 °c temperature measuring range
  • ≤ ± (0.15 °c + 0.002 |t|) accuracy of sensor element
  • Response time t50: ≤ 5 sresponse time t90: ≤ 10 s response time
  • Thread ½'' NPT process connection
  • 50 mm / 6 mm insertion length/diameter of probe
  • Without seal seal
  • 2 x PNP output signal
  • M12 round connector x 1, 4-pin connection type
  • Ip65, ip67 enclosure rating
View other configurations.
Sick 2095607 / YF2A14-020UB3XLEAX Process Sensor Accessory
Sick 2095607 / YF2A14-020UB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, straight, A-coded with Flying leads. Ideally suited to Zones with oils and lubricants, Drag chain operation, Robot.

In Stock
$15.00
Sick 2095608 / YF2A14-050UB3XLEAX Process Sensor Accessory
Sick 2095608 / YF2A14-050UB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, straight, A-coded with Flying leads. Ideally suited to Zones with oils and lubricants, Drag chain operation, Robot.

$23.00
Sick 2096234 / YF2A14-020VB3XLEAX Process Sensor Accessory
Sick 2096234 / YF2A14-020VB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, straight, A-coded with Flying leads. Ideally suited to Zones with chemicals.

$13.00
Sick 2096235 / YF2A14-050VB3XLEAX Process Sensor Accessory
Sick 2096235 / YF2A14-050VB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, straight, A-coded with Flying leads. Ideally suited to Zones with chemicals.

$18.00
