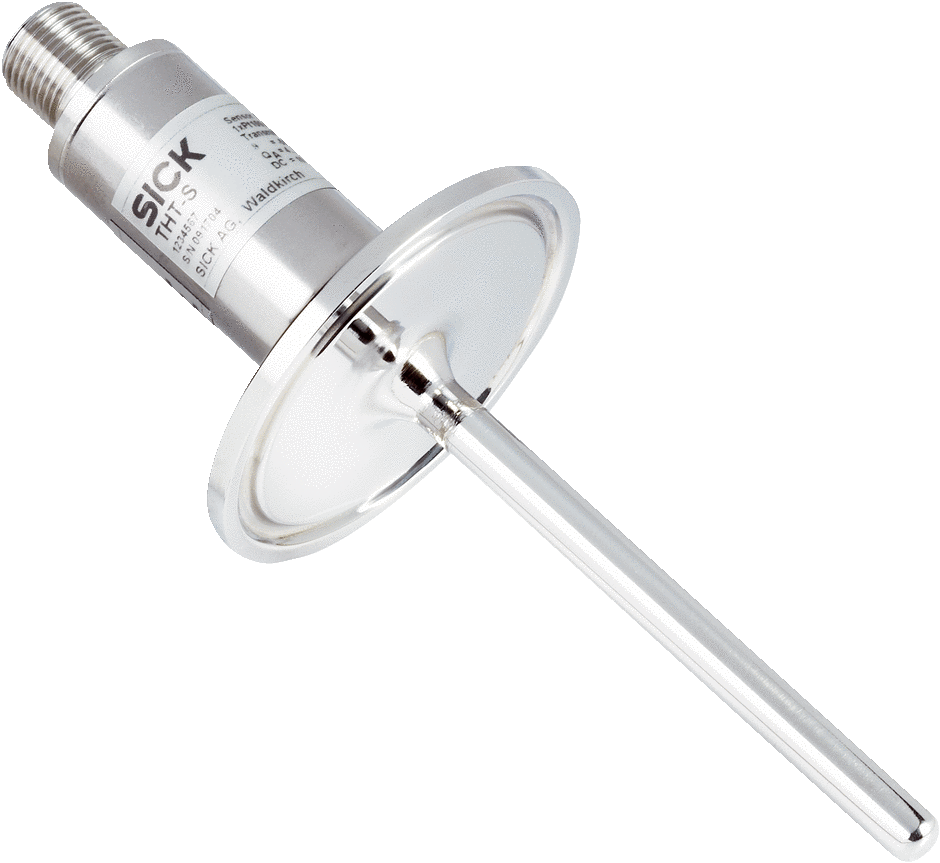

Sick 6047594 / THTS-1PA540256MZ Temperature Sensor

Hygienic temperature sensor with –50 to 150°C range, suitable for CIP and SIP compliant applications. Pt100, 4-wire output signal, with Conical coupling (DIN 11851) DN 40 with union nut.

$308.00
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • THTS-1PA540256MZ
  • 6047594
Highlights...

Features

  • –50 °c to +150 °c temperature measuring range
  • Class a according to IEC 60751 accuracy of sensor element
  • T50 ≤ 3,3 s t90 ≤ 9,7 s response time
  • Conical coupling (din 11851) DN 40 with union nut process connection
  • 25 mm / 6 mm insertion length/diameter of probe
  • Pt100, 4-wire output signal
  • M12 round connector x 1, 4-pin connection type
  • Ip67, ip69 enclosure rating
View other configurations.
Sick 2095607 / YF2A14-020UB3XLEAX Process Sensor Accessory
Sick 2095607 / YF2A14-020UB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, straight, A-coded with Flying leads. Ideally suited to Zones with oils and lubricants, Drag chain operation, Robot.

In Stock
$15.00
Sick 2095608 / YF2A14-050UB3XLEAX Process Sensor Accessory
Sick 2095608 / YF2A14-050UB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, straight, A-coded with Flying leads. Ideally suited to Zones with oils and lubricants, Drag chain operation, Robot.

$23.00
Sick 2095609 / YF2A14-100UB3XLEAX Process Sensor Accessory
Sick 2095609 / YF2A14-100UB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, straight, A-coded with Flying leads. Ideally suited to Zones with oils and lubricants, Drag chain operation, Robot.

$36.00
Sick 2095766 / YG2A14-020UB3XLEAX Process Sensor Accessory
Sick 2095766 / YG2A14-020UB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, angled, A-coded with Flying leads. Ideally suited to Zones with oils and lubricants, Drag chain operation, Robot.

$15.00
Sick 2095767 / YG2A14-050UB3XLEAX Process Sensor Accessory
Sick 2095767 / YG2A14-050UB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, angled, A-coded with Flying leads. Ideally suited to Zones with oils and lubricants, Drag chain operation, Robot.

$23.00
Sick 2095768 / YG2A14-100UB3XLEAX Process Sensor Accessory
Sick 2095768 / YG2A14-100UB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, angled, A-coded with Flying leads. Ideally suited to Zones with oils and lubricants, Drag chain operation, Robot.

$36.00
Sick 2096234 / YF2A14-020VB3XLEAX Process Sensor Accessory
Sick 2096234 / YF2A14-020VB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, straight, A-coded with Flying leads. Ideally suited to Zones with chemicals.

$13.00
Sick 2096235 / YF2A14-050VB3XLEAX Process Sensor Accessory
Sick 2096235 / YF2A14-050VB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, straight, A-coded with Flying leads. Ideally suited to Zones with chemicals.

$18.00
Sick 2096236 / YF2A14-100VB3XLEAX Process Sensor Accessory
Sick 2096236 / YF2A14-100VB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, straight, A-coded with Flying leads. Ideally suited to Zones with chemicals.

$26.00
Sick 2096237 / YF2A14-150VB3XLEAX Process Sensor Accessory
Sick 2096237 / YF2A14-150VB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, straight, A-coded with Flying leads. Ideally suited to Zones with chemicals.

$34.00
Sick 2095895 / YG2A14-020VB3XLEAX Process Sensor Accessory
Sick 2095895 / YG2A14-020VB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, angled, A-coded with Flying leads. Ideally suited to Zones with chemicals.

In Stock
$13.00
Sick 2095897 / YG2A14-050VB3XLEAX Process Sensor Accessory
Sick 2095897 / YG2A14-050VB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, angled, A-coded with Flying leads. Ideally suited to Zones with chemicals.

$18.00
Sick 2095898 / YG2A14-100VB3XLEAX Process Sensor Accessory
Sick 2095898 / YG2A14-100VB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, angled, A-coded with Flying leads. Ideally suited to Zones with chemicals.

$26.00
Sick 2119005 / YG2A14-015UB3XLEAX Process Sensor Accessory
Sick 2119005 / YG2A14-015UB3XLEAX Process Sensor Accessory

Female connector, M12, 4-pin, angled, A-coded with Flying leads. Ideally suited to Zones with oils and lubricants, Drag chain operation, Robot.

$13.00
