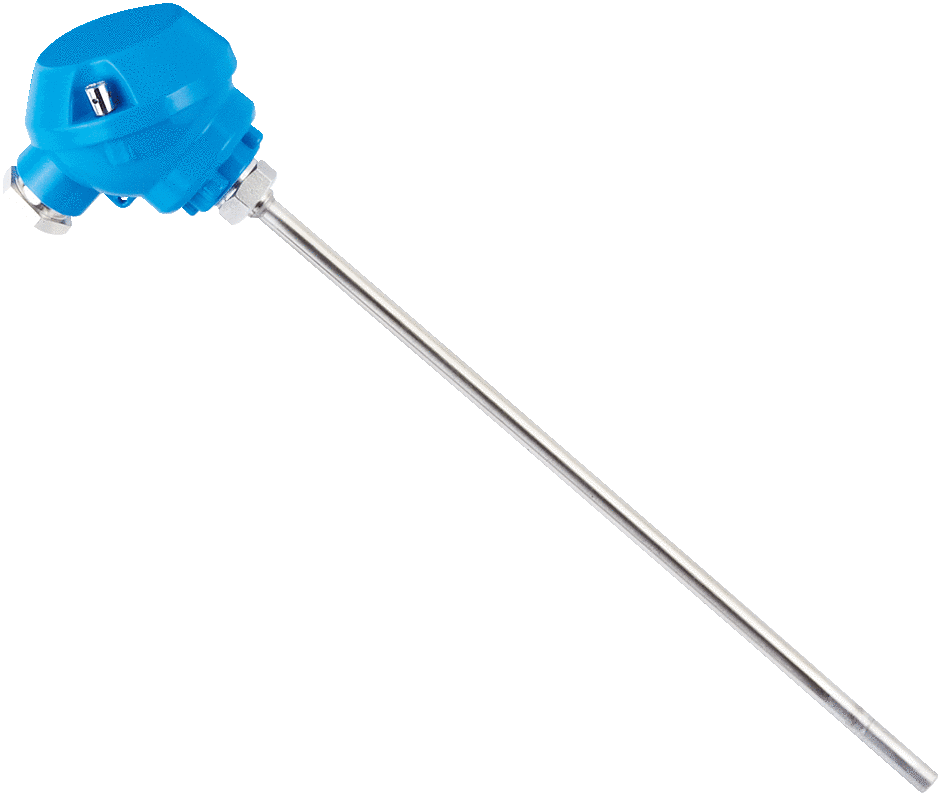

Sick 6082521 / TBT-1PBS21506PZ Temperature Sensor

Temperature sensor for industrial liquids and gasses. Pt100, 4-wire output. –50 to 250°C range. 150mm / 6mm insertion length/probe diameter. Compression fitting ½'' NPT, CrNi stainless steel ferrule connection.

$298.00
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • TBT-1PBS21506PZ
  • 6082521
Highlights...

Features

  • –50 °c to +250 °c temperature measuring range
  • Class a according to IEC 60751 accuracy of sensor element
  • Response time t50: ≤ 5.8 sresponse time t90: ≤ 15.5 s response time
  • Compression fitting ½'' npt, crni stainless steel ferrule process connection
  • 150 mm / 6 mm insertion length/diameter of probe
  • Pt100, 4-wire output signal
  • Cable gland m16 x 1.5 connection type
  • Ip67 enclosure rating
View other configurations.
