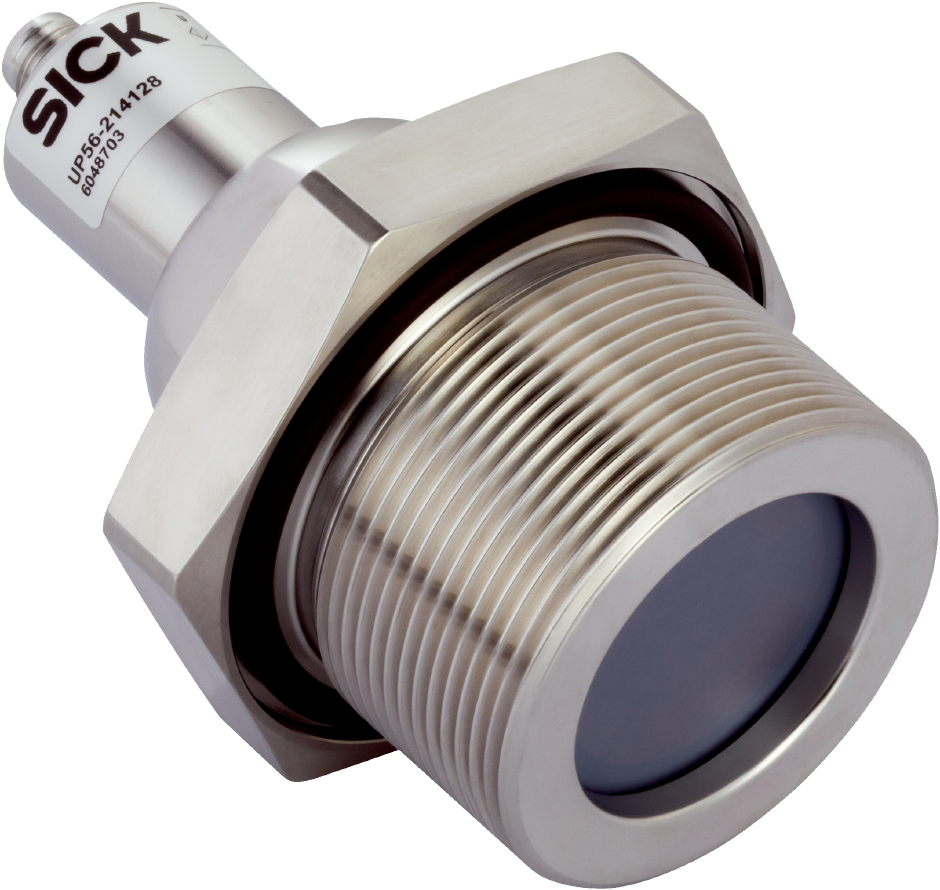

Sick 6048703 / UP56-214128 Level Sensor

1 x PNP + 4 to 20mA / 0 to 10V output level sensor. 0 to 6bar pressure range, with 350 to 3,400mm measuring range in tank. G 2 A PN 6 connection. Display included: no.

$1,309.00
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • UP56-214128
  • 6048703
Highlights...

Features

  • G 2 a PN 6 process connection
  • 1 x PNP + 4 ma to 20 ma / 0 v to 10 v output signal
  • Stainless steel 1.4571, FKM housing material
  • 350 mm to 3,400 mm measuring range in tank
  • 350 mm to 8,000 mm measuring range immersion tube
  • Round connector m12 x 1, 5-pin connection type
  • –25 °c to +70 °c process temperature
  • 0 bar to 6 bar, gauge pressure process pressure
  • No display
