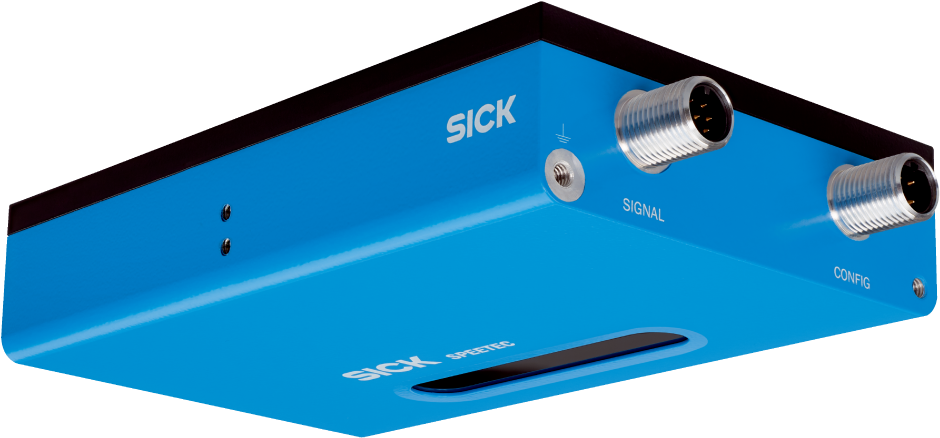

Sick 1121431 / NCV50B-11CCP100100 Non-contact Motion Sensor
Measures length, speed and position without surface contact. 0 to 50mm measuring distance with 1D, x-direction movement, 12 to 30V supply voltage, TTL / RS-422 communication interface, and 100µm/pulse.
$7,208.00
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
- NCV50B-11CCP100100
- 1121431
Highlights...
- NCV50B-11CCP100100
- By SICK
- FREE Shipping
Overview
Features
- 50 mm nominal measuring distance
- 1d, x-direction direction of movement
- 1 laser class
- 850 nm invisible infrared light wavelength/type of light
- 12 v to 30 v supply voltage
- Ttl / rs-422 communication interface detail
- Male connector, m12, 8-pin, a-coded connection type
- Male connector, m12, 4-pin, d-coded (only for variants that can be parameterized) parameterization and diagnostic interface
- 100 measuring increment (µm/pulse)
- Standard housing version
- Standard industrial version
- > 0 m/s to 10 m/s speed measuring range
- Yes programmable/configurable
- 0.1 % measurement accuracy
- 30 to 100 mm possible static measuring distance
Accessories
