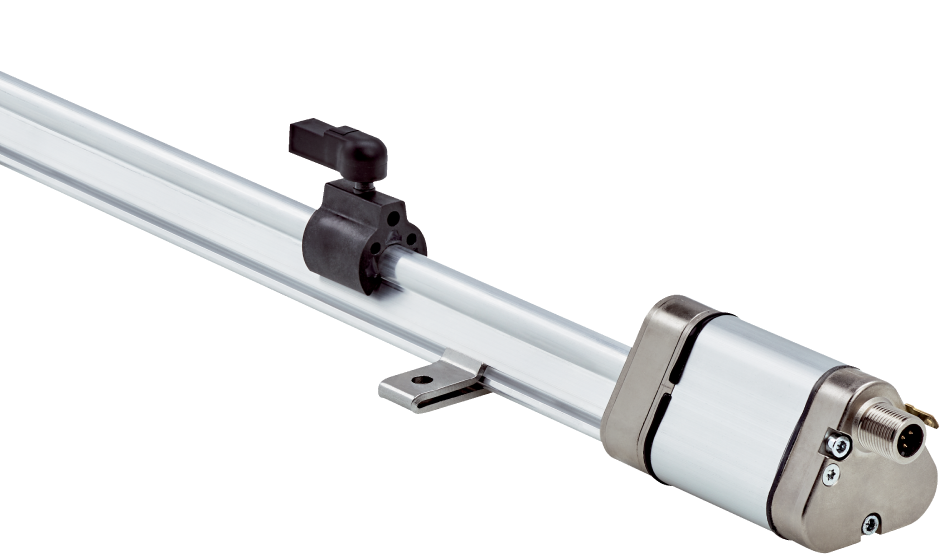

Sick 1136431 / DAXSVN-0950SA040900100 Encoder

DAX Slider encoder, with Analog / Voltage. Slide magnet, 24V DC (± 20%) supply voltage.

$874.00
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • DAXSVN-0950SA040900100
  • 1136431
Highlights...

Features

  • Dax slider design
  • Analog / voltage communication interface
  • 0 v to 10 v voltage output
  • Male connector, m12, 5-pin connection type
  • 0 mm to 950 mm measurement range
  • 24 v DC (± 20%) supply voltage
  • Signal 1: rising, signal 2: falling sequence of signals
  • 25 mm / 63 mm unusable range (zero zone/damping zone)
  • Slide magnet magnet type
View other configurations.
