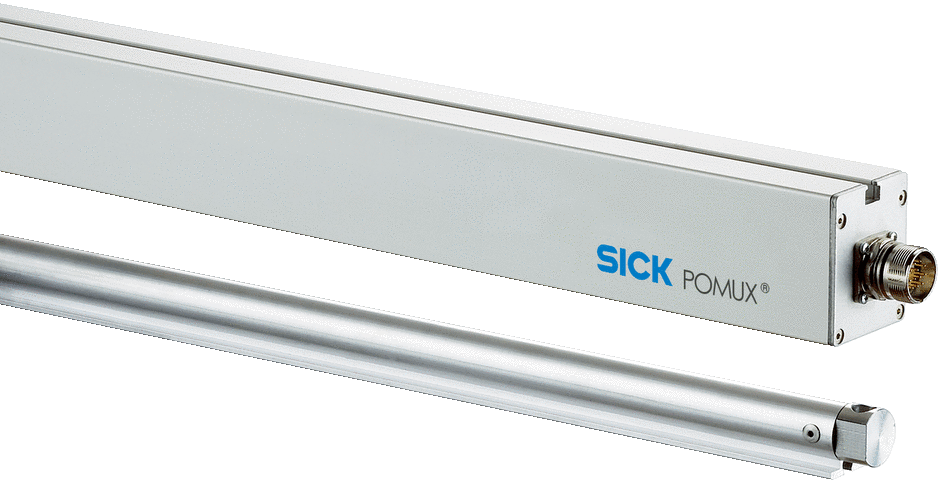

SICK KH53 Series Encoder

Durable linear encoder components for harsh environmental conditions with high precision and repeatability. Measuring range up to 1700m.

This model has 48 variants.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • KH53 Series
Highlights...

Features

  • Measuring range: 0 to 1700m (depending on model)
  • Communication interface: SSI / PROFIBUS DP
  • Resolution: 0.1mm
  • Repeatability: down to 0.3mm
  • Supply voltage: 10 to 32V

The SICK KH53 Series Encoder is a non-contact linear product designed for absolute position measurement across distances up to 1,700 meters with high precision and reliability. This encoder consists of a read head that scans a series of measuring elements (permanent magnets) positioned along the measurement path at 25mm or 55mm intervals. With a system resolution of 0.1mm and high reproducibility of 0.3mm/1mm, the KH53 Series delivers accurate absolute positioning without requiring reference runs, enabling immediate operation after installation. Capable of handling traversing speeds up to 6.6m/s and able to  reliably operate in the harsh ambient conditions involving dirt, dust, fog, shock, and vibration, this maintenance-free system ensures long service life and wear-free operation ideal for cranes, storage systems, conveyor systems, and automated guided vehicles.

Designed for maximum operational efficiency and flexibility, the KH53 Series offers SSI and PROFIBUS DP communication interfaces depending on the configuration selected, with versatile connection options including M23 12-pin male connector, 12-wire cable, and 3x M12 male connectors. The durable design and range of flexibility in application-specific configuration ensures reduced downtime and enhanced productivity in demanding industrial applications.

Applications

  • Container cranes in terminals
  • Crane trolley positioning
  • Automated guided vehicles (AGVs)
  • Storage and retrieval systems
  • Conveyor systems
  • Rail vehicle positioning
