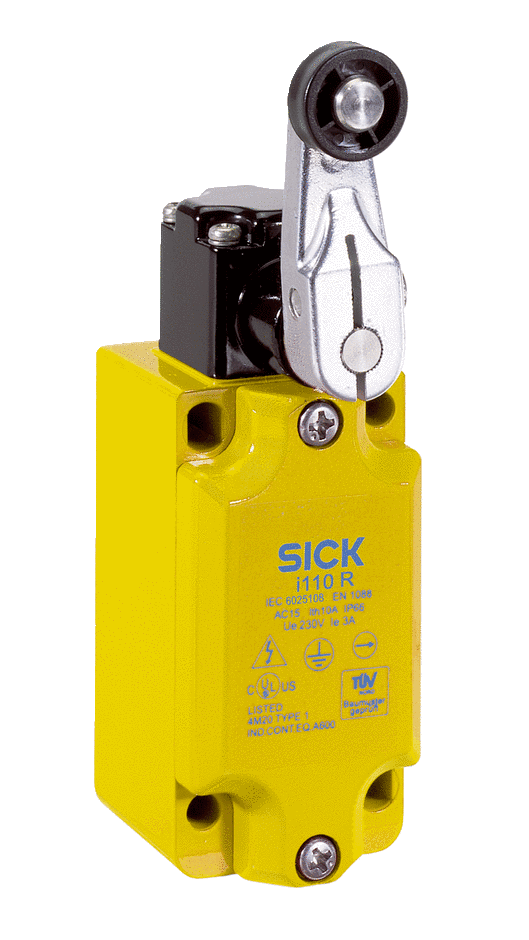

SICK i110R Series Safety Switch

Rugged electro-mechanical safety position switch with turning lever. Snap or slow action switching element, with IP66 rated enclosure.

This model has 3 variants.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • i110R Series
Highlights...

Features

  • Switching principle: snap action / slow action
  • Switch type: safety position switches
  • Positive action N/C contacts: 1 to 3
  • N/O contacts: 1 / 2
  • Housing material: Metal
  • Enclosure rating: IP66 (IEC 60529)
  • Connection type: able gland, 1 x M20

The SICK i110R Series Safety Switch ensures reliable identification of dangerous movements, even in high-speed industrial environments. Featuring a robust standardized metal housing constructed from die-cast zinc, this switch is built to withstand the demanding conditions of modern manufacturing operations. The distinctive metal turning lever with plastic roller can be actuated with high torques, ensuring the entire safety switch maintains its integrity under harsh system use. Available with either slow-action or snap-action switching elements, the device supports one to three positive action N/C contacts, and one to two N/O contacts depending on the configuration. With an IP66 enclosure rating (IEC 60529), the i110R Series provides exceptional protection against dust and water ingress, making it suitable for challenging industrial applications.
