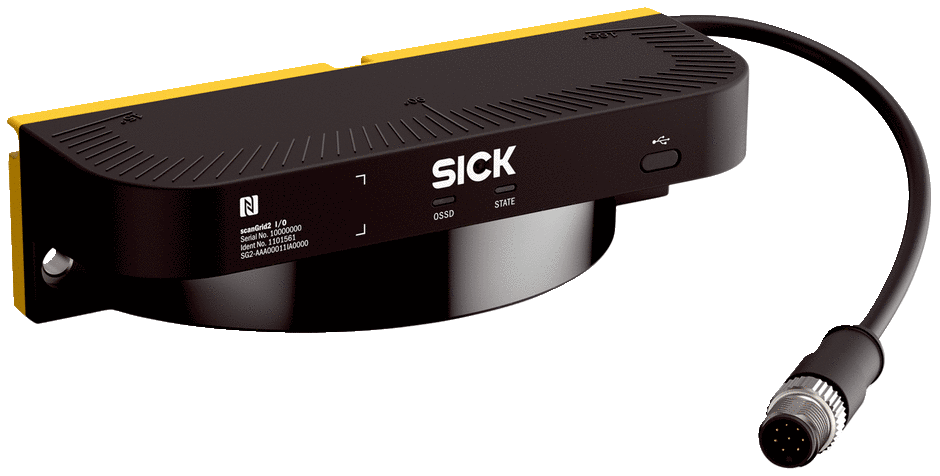

SICK scanGrid2 Series Safety Scanner

LiDAR multibeam scanner with up to 16 fields, and PL c, SIL 1, Type 2 safety. Designed for use with automated guided carts.

This model has 2 variants.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • scanGrid2 Series
Highlights...

Features

  • Fields: 8 / 16
  • 150° scanning angle
  • Resolution: 50 to 200mm
  • Communication interface: CANopen, local I/O
  • Safety Designer software
  • Safety level: PL c, SIL 1, Type 2

The SICK scanGrid2 Series Safety Scanner is a LiDAR multibeam scanner with safe solid state technology. Designed specifically for use with line-guided AGCs and shuttle systems, this compact device (43mm height) features PL c, SIL 1, Type 2 safety protection with a 1.1m protective field range and 4m warning field range. With a 150° scanning angle and configurable resolution options from 50 to 200mm, the scanGrid2 Series provides comprehensive hazardous area protection while maintaining a space-efficient design.

The scanGrid2 Series installation and configuration is streamlined through both the Safety Assistant mobile app and Safety Designer software, with integrated diagnostics and clone functions that significantly reduce setup time. 8 or 16 fields, with local I/O and CANopen connectivity available, this scanner is a versatile safety solution for small vehicle automation applications.
