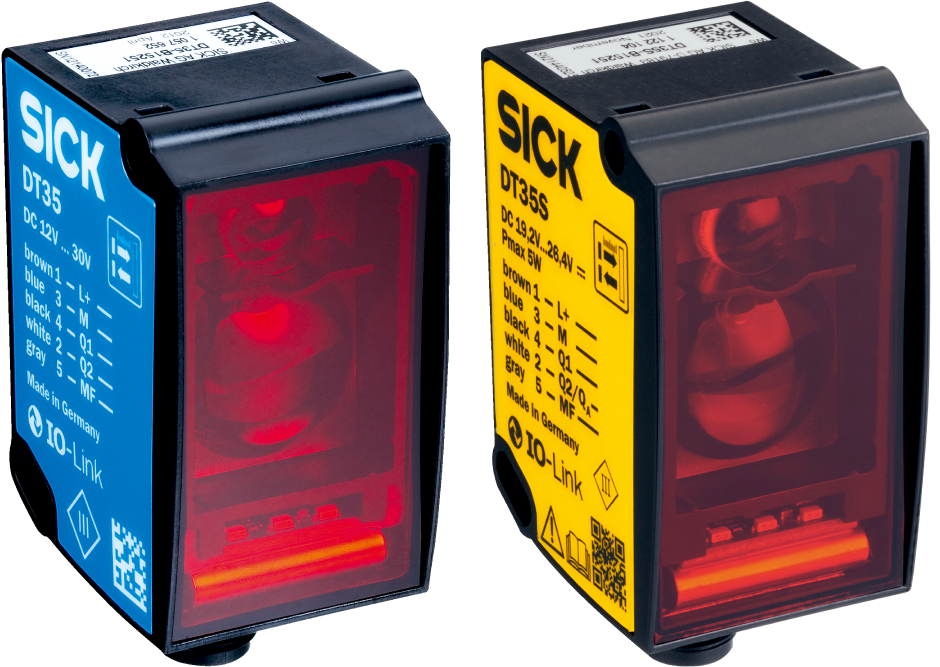

Sick 1057655 / DS35-B15221 Distance Sensor
Class 2 Laser, red. 50 to 12000 mm, 90% remission factor / 50 to 5300 mm, 18% remission factor / 50 to 3100 mm, 6% remis distance range, with 2.5 ms response time. IO-Link, 2 x push-pull digital output.
$564.00
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
- DS35-B15221
- 1057655
Highlights...
- DS35-B15221
- By SICK
- FREE Shipping on orders of $1,000 or more
Overview
Features
- Io-link communication interface
- 50 mm to 12,000 mm, 90% remission factor50 mm to 5,300 mm, 18 % remission50 mm to 3,100 mm, 6% remission factor measuring range
- 2 laser class
- Laser, red light source
- 2.5 ms minimum response time
- 2 x push-pull: pnp/npn digital output
- 1 x multifunctional input (mf)
