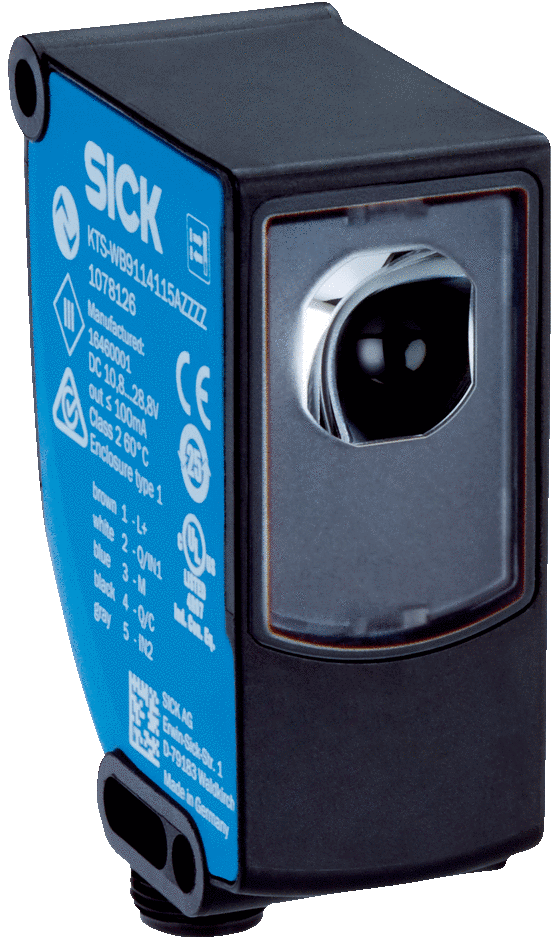

Sick 1220040 / KTS-WBN114115AZZZZ Contrast Sensor

High speed contrast sensor, with 13 mm sensing distance, Push-pull switching outputs, and N-point teach-in, 2-point teach-in, teach-in dynamic, auto mode.

$830.00
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • KTS-WBN114115AZZZZ
  • 1220040
Highlights...

Features

  • Led, RGB light source
  • Io-link communication interface
  • Standard device type
  • 13 mm sensing distance
  • Push-pull: pnp/npn switching output
  • 0.9 mm x 3.8 mm light spot size
  • Vertical light spot direction
  • Long side of housing light emission
  • Male connector m12, 5-pin connection type detail
  • N-point teach-in, 2-point teach-in, teach-in dynamic, auto mode teach-in mode
  • N-point-teach-in delivery status
  • Plastic housing material
