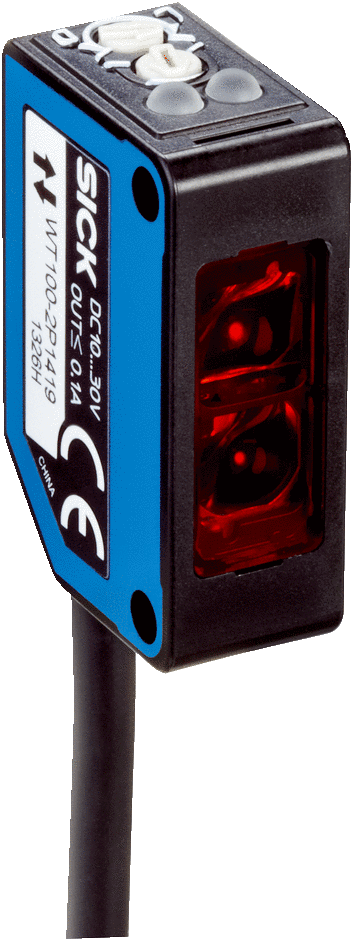

SICK W100-2 Series Photoelectric Sensor

Miniature photoelectric sensor with LED light source, with wide sensing range, ambient light immunity. Potentiometer adjustment available.

This model has 53 variants.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • W100-2 Series
Highlights...

Features

  • Functional principle(s):
    • Photoelectric proximity sensor
    • Photoelectric retro-reflective sensor
    • Photoelectric through-beam sensor
  • Functional principle detail(s):
    • Background suppression
    • Energetic
    • Dual lens system (min. distance to reflector)
  • Light source: LED
  • Switching output(s): NPN, PNP
  • Switching mode: light/dark, light, dark
  • Adjustment: none, potentiometer

The SICK W100-2 Series Photoelectric Sensor is a line of sensors compatible with standard detection principles, with variants including proximity, through-beam, and retro-reflective sensors. Retro-reflective models include transparent object detection, energetic sensors, and sensors with background blanking. Light, dark, and light/dark switching modes are available, with optional potentiometer adjustment in certain configurations. The housing design of the W100-2 Series includes M3 threaded mounting holes, spaced one inch apart, that permit straightforward, inexpensive mounting.
