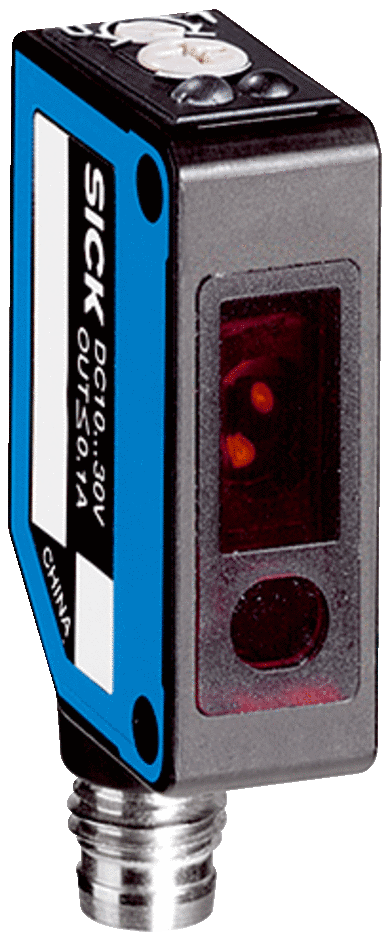

SICK W8 Series Photoelectric Sensor

Miniature photoelectric sensor with LED light, standard detection principles, with background suppression and no minimum reflector distance variants available.

This model has 41 variants.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • W8 Series
Highlights...

Features

  • Functional principle(s):
    • Photoelectric proximity sensor
    • Photoelectric retro-reflective sensor
    • Photoelectric through-beam sensor
  • Functional principle detail(s):
    • Background suppression
    • Without reflector minimum distance (autocollimation/coaxial optics)
  • Light source: LED
  • Switching output(s): NPN, PNP
  • Switching mode: light/dark
  • Switching frequency: 2kHz
  • Adjustment: none, potentiometer
  • Stainless steel mounting bracket (1.4301/304) BEF-W100-A included with delivery

The SICK W8 Series Photoelectric Sensor is a miniature sensor line designed for close-range applications. Autocollimation,
background suppression, and high switching frequencies of up to 2kHz make them ideal for a broad range of applications. The
W8 Series offers various standard detection principles, including the WTB8 proximity models, the WL8 and WLG8 retro-reflective models, as well as the WSE8 through-beam. The housing is designed with M3 threaded mounting holes that provide streamlined and secure mounting.
