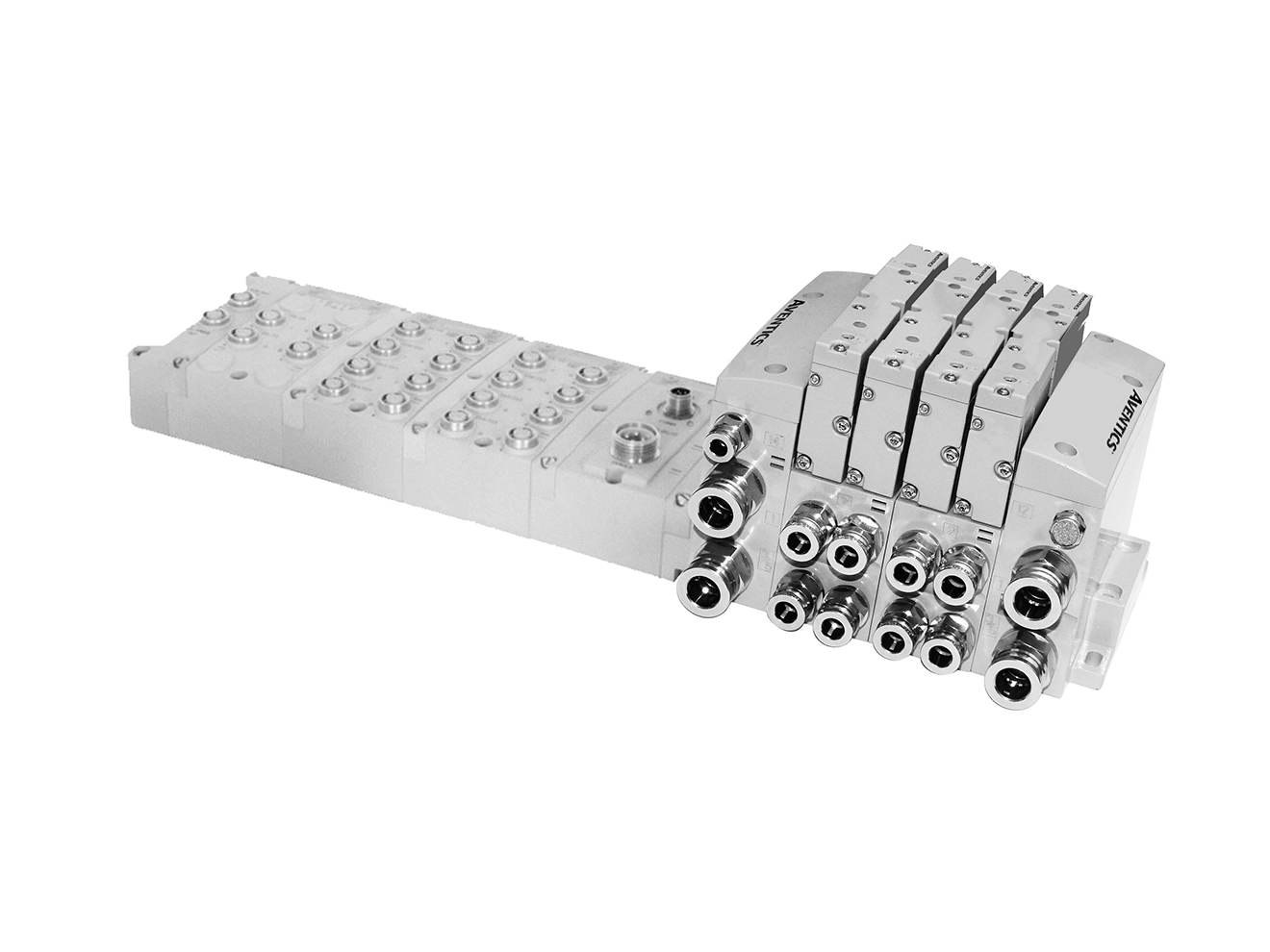

Aventics 502 Series Electrically Actuated Directional Valve

General purpose electrically actuated directional control valve for air and inert gas media. High flow rates up to 650l/min and low power consumption.

This model has 23 variants.
Part Number
  • 502 Series
Highlights...

Features

  • Media: Air, Inert Gas
  • Control: electric, solenoid
  • Function:
    • 4 way - 5/2
    • 4 way - 5/3 - Closed Center
    • 4 way - 5/3 - Open Center
    • 4 way - 5/3 - Pressure Center
    • Dual 3 - Way 2 X Normally Closed
  • Flow rate(s): up to 650l/min
  • Max working pressure: 8bar
  • Min working pressure: 2bar
  • Manual override with detent available
  • Wattage: 1.1W
  • Certifications: CSA, IP65, UL

The Aventics 502 Series Electrically Actuated Directional Valve is a line of general purpose automation valves designed for directional control and piloting applications involving higher flow rates, with the bonus of reduced power consumption. This compact (18mm), modular valve series is particularly suited for automotive, food and beverage, pharmaceutical, and packaging machinery industries. The 502 Series valve meets the ISO 15407-2 standard while maintaining high-flow characteristics.
