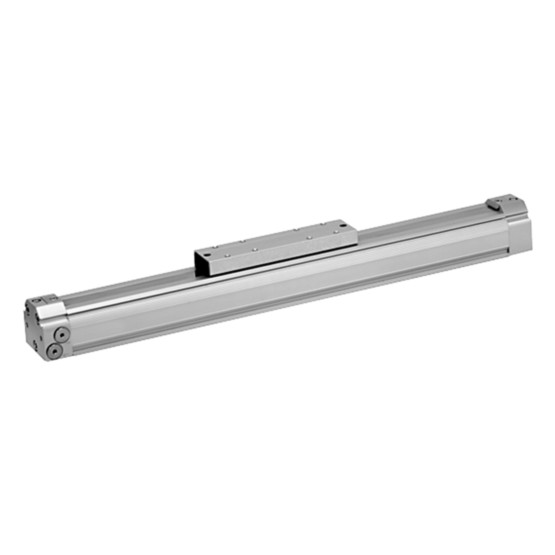

Aventics RTC Series Pneumatic Linear Actuator

Compact pneumatic rodless cylinder with 16 to 80mm bore sizes, stroke lengths up to 9900mm, and 8bar maximum working pressure.

This model has 381 variants.
Part Number
  • RTC Series
Highlights...

Features

  • Bore size(s): 16 to 80mm
  • Stroke length(s): up to 9900mm
  • Speed range: 0.01 to 20m/s
  • Compressed air connection(s): M5, G1/8
  • Maximum working pressure: 8bar
  • Compact design
  • Materials:
    • Cylinder Tube: aluminum, anodized
    • Cap: aluminum, anodized
    • Seal: polyurethane
    • Sealing strips: polyurethane stainless steel
  • Ball rail table: aluminum, anodized

The Aventics RTC Series Pneumatic Linear Actuator is a compact, rodless cylinder with an oval piston shape and one-piece slide/piston unit. This line is available in four variants: basic, slide bearing, compact guide, and heavy duty for larger loads. This variation in focal features permits adaptability to a range of movements and positions. These actuators are compatible with piston diameters of 16mm to 80mm, stroke lengths up to 9900mm, with a speed range 0.01 to 20m/s.
