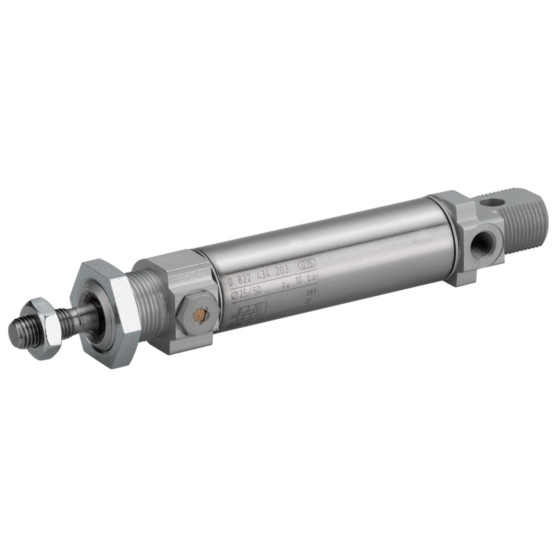

Aventics MNI Series Pneumatic Linear Actuator

Compact pneumatic round cylinder with 10 to 25mm bore sizes, stroke length up to 850mm. Up to 309N/265N extending and retracting force, ATEX certification option.

This model has 650 variants.
Part Number
  • MNI Series
Highlights...

Features

  • Bore size(s): 10 to 25mm
  • Stroke length(s): 5 to 850mm
  • Compressed air connection(s): M5, G1/8
  • Piston force retracting: up to 265N
  • Piston force extending: up to 309N
  • Maximum force: up to 29.4N
  • Maximum working pressure: 10bar
  • Compact design
  • ATEX certification available

The Aventics MNI Series Pneumatic Linear Actuator is an ISO 6432 round cylinder designed for general machine construction, with a compact design and durable construction support a long service life. Available configurations include a single/through piston rod, elastic/adjusted cushioning, with or without magnetic detection. Select variants are available with a heat resistant scraper, or ATEX certification.
