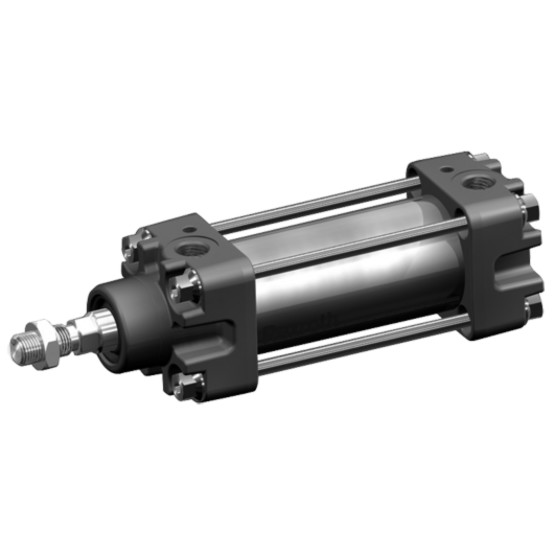

Aventics 167 Series Tie Rod Cylinder

Double-acting tie rode cylinder for high stroke frequencies and pulley applications. 25 to 100mm bore size, up to 4680N/4230N extending/retracting piston force.

This model has 68 variants.
Part Number
  • 167 Series
Highlights...

Features

  • Bore size: Ø 25 to 100mm
  • Stroke Length: 25 to 1500mm
  • Max working pressure: 10bar
  • Piston force (extending): 300 to 4690N
  • Piston force (retracting): 230 to 4230N
  • Plug-in with tube nut / External thread
  • Standard industry scraper
  • Certification: ISO 6431
